Fisher™ Type VS100 Slam-Shut

Fisher

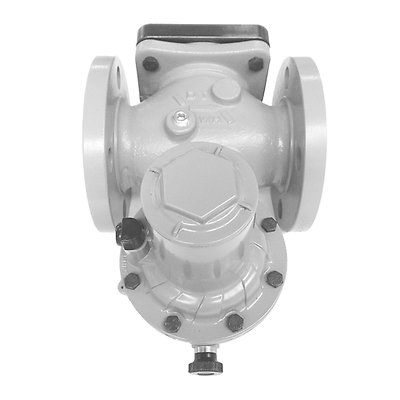

Fisher Type VS100 slam-shut is designed to shut off the flow of gas to the downstream system in the event of outlet pressure rising above or falling below the predefined levels. Type VS100 consists of a body with a removable orifice, enclosed by a bonnet and a Type VSX4 slam-shut device.

Specifications

Available Configurations
Types VS111 and VS112: For Medium Capacity application with 19 mm / 0.75-inch orifice size
Body Sizes and End Connection Styles
Medium Capacity Body (MC):
  Rp 1, 1-1/4, 1-1/2
  1, 1-1/4, 1-1/2 NPT
  Rp 1 x 2-1/4 GAZ
  DN 40 PN 16 slip-on

Features

  • Medium and High Capacity Body Sizes Available
  • Quick Response Time
  • Ductile Iron and Steel Body Construction
  • Complies with The Pressure Equipment Directive (97/23/EC) Requirements
