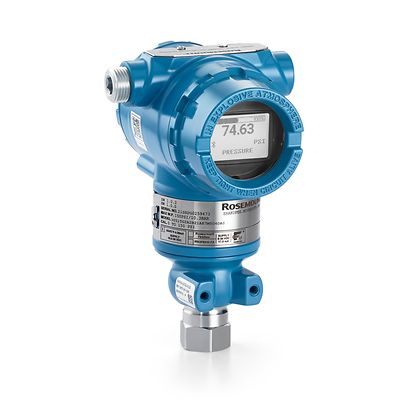

Rosemount™ 3051 Pressure Transmitter Family

Select

View Demo

Learn About

Product Description

Benefit from industry-leading capabilities and trusted performance with the Rosemount 3051 Pressure Transmitter. With over 10 million devices installed, this pressure transmitter family offers an all-in-one solution for pressure, level and flow measurement.

Specifications

Warranty: Up to 5-year limited warranty

Rangedown: Up to 150:1

Communication Protocol: 4-20 mA HART^®, WirelessHART^®, FOUNDATION™ fieldbus, PROFIBUS^®, 1-5 V Low Power HART^®

Measurement Range: Coplanar: Up to 4000 psi (275,79 bar)
Inline: Up to 20000 psi (1378,95 bar)

Process Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST

Diagnostics: Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics

Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE^®, hazardous location, see full specs for complete list of certifications

Features

Over 10 million Rosemount 3051 devices installed globally, providing reliable pressure readings in harsh environments
Fully-assembled pressure, level and flow solutions arrive ready-to-install for improved reliability and performance
Bluetooth^® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool
The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions
Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse lines before they impact the quality of the process for increased safety and reduced downtime
10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility
SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
Wireless Features:
- WirelessHART^® technology is secure and cost-effective and delivers >99% data reliability
- SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
- Easy installation enables quick instrumentation of measurement points without the cost of wiring
