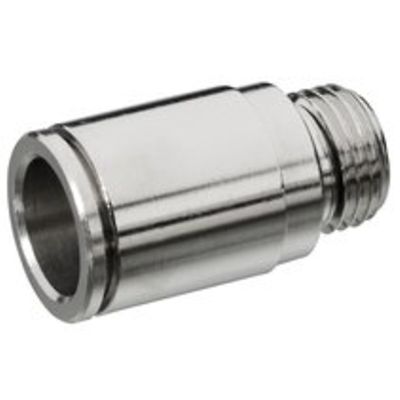

AVENTICS™ Series QR2-S-RPN standard 1823373048

Fitting type

Straight fitting

Compressed air connection type

External thread

Port G

G 1/4

Compressed air connection type 2

push-in fitting

Port D

Ø 8

Type

QR2-S-RPN

Working pressure min.

-0.95 bar

Working pressure max

16 bar

Min. ambient temperature

-20 °C

Max. ambient temperature

80 °C

Delivery unit

10 piece

Weight

0.016 kg

Housing material

Brass

Seal material

Acrylonitrile butadiene rubber

Material tooth lock washer

Stainless Steel

Material release ring

Brass

Material thread

Brass
