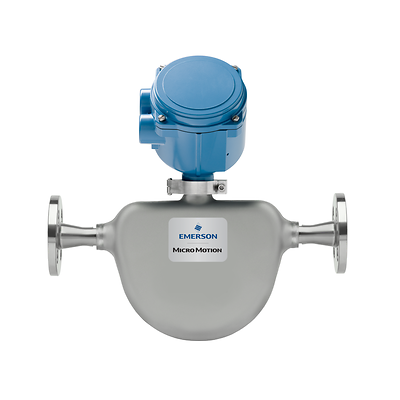

Micro Motion ELITE CMFS040M Coriolis Meter, 3/8 Inch (DN10), 316L Stainless Steel

Configure

Calculate Line Size

Learn About

ADD TO WORKSPACE

Product Description

A 316L Stainless Steel, drainable, ELITE peak performance Coriolis flow meter designed to deliver accurate, repeatable flow measurement in the most challenging applications.

Specifications

Mass flow accuracy (Liquid): ±0.10% of rate

Mass flow repeatability (Liquid): ±0.05% of rate

Volume flow accuracy (Liquid): ±0.10% of rate

Volume flow repeatability (Liquid): ±0.05% of rate

Mass flow accuracy (Gas): ±0.25% of rate

Mass flow repeatability (Gas): ±0.20% of rate

Density accuracy (Liquid): ±0.0005 g/cm3 (±0.5 kg/m3)

Density repeatability (Liquid): ±0.0002 g/cm3 (±0.2 kg/m3)

Temperature accuracy: ±1 °C ±0.5% of reading

Sensor maximum working pressure: 1,500 psig (103 barg)

Meter approvals, calibrations, and certifications: •UL
•CSA
•IECEx
•NEPSI
•ATEX
•Ingress Protection
•EMC effects

Features

Get unparalleled measurement sensitivity and stability from this uniquely designed meter
Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
Realize unmatched flow and density measurement performance in your most challenging liquid, gas and slurry applications
Achieve superb measurement confidence with the highest immunity to fluid, process and environmental effects
Improve scalability with a broad array of application coverage including hygienic, cryogenic and high-pressure
Implement the widest process-measurement range – -400°F to 662°F (-240°C to 350°C) and up to 6,000 psig (414 barg)
Widest range of meter approvals and certifications, including; CSA, ATEX, NEPSI, IECEx, Ingress Protection 66/67, SIL2 and SIL3, marine, and custody transfer approvals
Choose from models available in 316L Stainless Steel, C-22 nickel alloy and super-duplex materials
Interact with our 3D model to learn more about our ELITE Coriolis Flow and Density Meters
