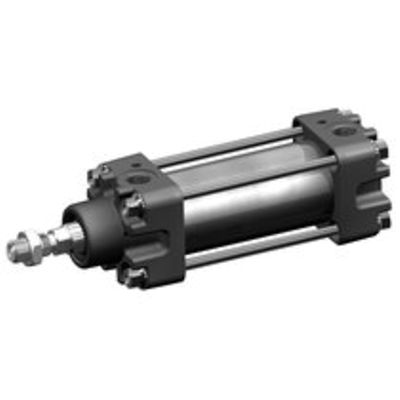

AVENTICS™ Tie rod cylinder ISO 6431, Series 167 1670208000

Standards

ISO 6431

Piston Ø

25 mm

Stroke

80 mm

Functional principle

Double-acting

Cushioning

Pneumatic adjustable cushioning

Magnetic piston

Piston with magnet

Environmental requirements

Industry standard

Piston rod

single

Scraper

Standard industrial scraper

Pressure for determining piston forces

8 bar

Retracting piston force

230 N

Extracting piston force

300 N

Min. ambient temperature

-20 °C

Max. ambient temperature

75 °C

Working pressure min.

2 bar

Working pressure max

10 bar

Ports

G 1/8

Piston rod thread

M10x1,25

Cushioning length

11 mm

Cushioning energy

2.3 J

Weight 0 mm stroke

0.27 kg

Weight +10 mm stroke

0.018 kg

Stroke max.

1500 mm

Medium

Compressed air

Min. medium temperature

-20 °C
