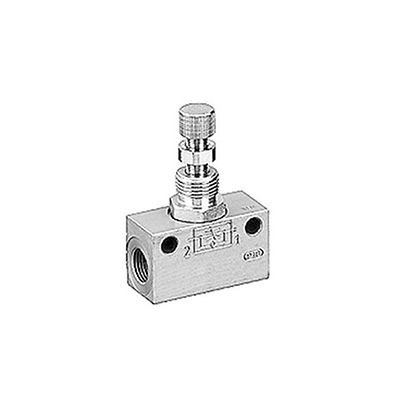

AVENTICS™ Series CC01 5341120000

Port 1

M5

Port 2

M5

direction of throttle

1 > 2, 2 > 1

Nominal flow Qn 1 to 2

130 l/min

Compressed air connection type 1

Internal thread

Compressed air connection type 2

Internal thread

Medium

Compressed air

Min. working pressure

0.5 bar

Max. working pressure

10 bar

Min. ambient temperature

0 °C

Max. ambient temperature

60 °C

Min. medium temperature

0 °C

Max. medium temperature

60 °C

Weight

0.05 kg

Housing material

Aluminum

Seal material

Acrylonitrile butadiene rubber
