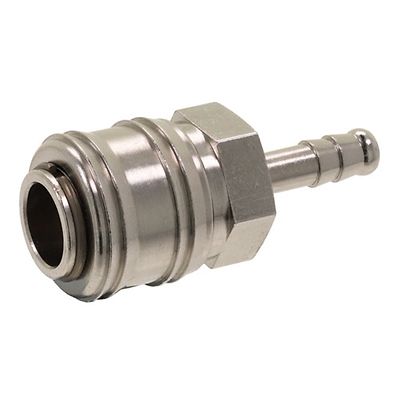

AVENTICS™ Lock coupling, Series CP1 1823376010

Port D

NW 7,2

Port G

Ø 8

Compressed air connection type

Collar

Nominal width NW

7.2 mm

Nominal flow Qn

1500 l/min

Working pressure min.

0 bar

Working pressure max

16 bar

Min. ambient temperature

-10 °C

Max. ambient temperature

90 °C

Min. medium temperature

-10 °C

Max. medium temperature

90 °C

Medium

Compressed air

Delivery unit

2 piece

Weight per piece

0.07 kg

Housing material

Brass

Material release bushing

Brass

Seal material

Acrylonitrile butadiene rubber

Material connector

Brass
