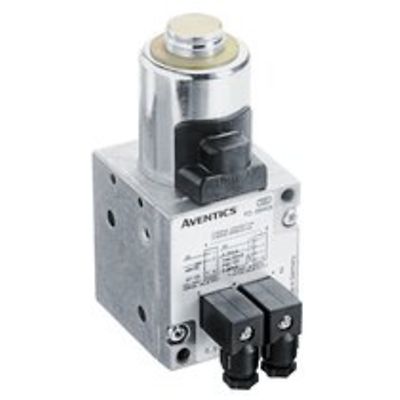

AVENTICS™ E/P pressure regulator, Series ED05 5610141320

Type

Poppet valve

Certificates

CE declaration of conformity

Working pressure min.

0 bar

Working pressure max

11 bar

Min. ambient temperature

0 °C

Max. ambient temperature

70 °C

Compressed air connection input

G 1/4

Compressed air connection output

G 1/4

Compressed air connection, exhaust

G 1/4

Medium

Compressed air

Nominal flow Qn

1000 l/min

Control

Analog

DC operating voltage

24 V

Hysteresis

< 0,06 bar

Mounting orientation

α = 0-90° β = 0-90°

Permissible ripple

5%

Protection class

IP65

Electrical connection

Plug

Electrical connection

ISO 15217, form C

Signal connection

input and output

Signal connection

Plug

Signal connection

ISO 15217, form C

Nominal input value

0 ... 10 V

Regulation range min.

0 bar

Regulation range max.

6 bar
