Tescom-P-SD-X

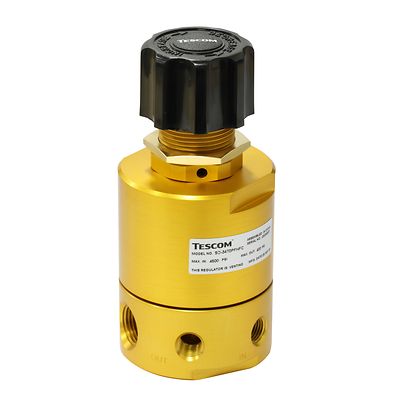

TESCOM™ Series SD-X Short Diving Pressure Regulator

Product Description

Engineered specifically for the commercial diving industry, the SD-X series pressure regulator ensures a consistent, breathable air supply even as surface pressure drops. Its advanced sealing technology minimizes leaks, maintaining stable outlet pressure and preventing dangerous fluctuations. This reliability translates directly into enhanced diver safety, reducing the risk of equipment failure during critical operations. By efficiently utilizing remaining air, the regulator extends the diver's operational window, allowing longer, safer dives. Its performance under pressure makes it an essential tool for demanding underwater environments. Trust in a system designed to keep divers safe, focused, and productive.

Specifications

Nominal Inlet Pressure
4,500 psig / 300 bar
Max Outlet Pressure
400 psig / 27 bar
Body Material
Anodized Aluminum, Brass
Seat Material
PCTFE
O-Rings Material
Buna, Viton
Filter Material
Bronze
Filter Size
10 um
Ports Size & Type
1/4" NPT(F), 1/2" NPT(F)
Flow Capacity
Cv = 0.8
Load Type
Spring

Features

  • Consistent air supply
  • Enhanced safety; built to withstand the most demanding environments
  • Increased operational window; optimal air pressure control
  • Portfolio offering robustness
  • Compact regulator design that simplifies system integration
