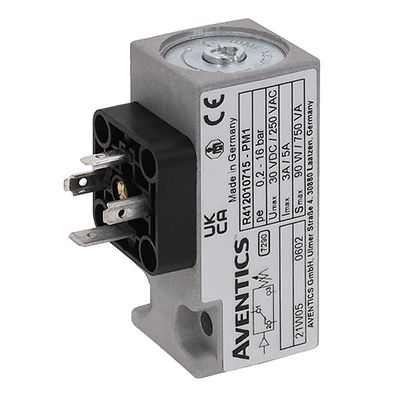

AVENTICS™ Pressure Switches, Series PM1, G1/4, form A, without valve plug connector R412010712

Type

Mechanical

Type

Diaphragm, spring loaded, adjustable

Mounting orientation

Any

Operating pressure min

0.2 bar

Operating pressure max

16 bar

Protection against overpressure

80 bar

Operational voltage

12-125 V DC, 12-250 V AC

Max. shock resistance

15 g IEC 60068 - 2-64

Vibration resistance

10 g (60 - 500 Hz) IEC 60068 - 2-6

Precision (% of full scale value)

± 2 %

Hysteresis

max. switching pressure difference

Measurement

Relative pressure

Compressed air connection

G 1/4

Compressed air connection type

Internal thread

Min. medium temperature

-10 °C

Max. medium temperature

80 °C

Medium

Compressed air, Hydraulic oil

Valve plug connector

Without valve plug connector

Electrical connection type

Plug

Electrical connection size

EN 175301-803, form A

Min. ambient temperature

-20 °C

Max. ambient temperature

80 °C

Switching element

microswitch (input/output)

Max. switching frequency

100/min.

Switching point

adjustable
