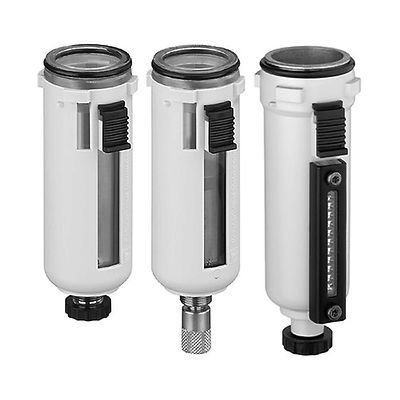

AVENTICS™ Reservoir, Series AS3-CLS/ -CLP/ -CLC R412007345

Type

Reservoir

Version

reservoir, metal, with inspection glass

Filter reservoir volume

49 cm³

Condensate drain

fully automatic, open without pressure

inspection glass

with window

Certificates

suitable for ATEX

ATEX

suitable for ATEX

Working pressure min.

1.5 bar

Working pressure max

16 bar

Min. ambient temperature

-10 °C

Max. ambient temperature

50 °C

Min. medium temperature

-10 °C

Max. medium temperature

50 °C

Medium

Compressed air

Weight

0.39 kg

Material reservoir

Die cast zinc

Seal material

Acrylonitrile butadiene rubber
