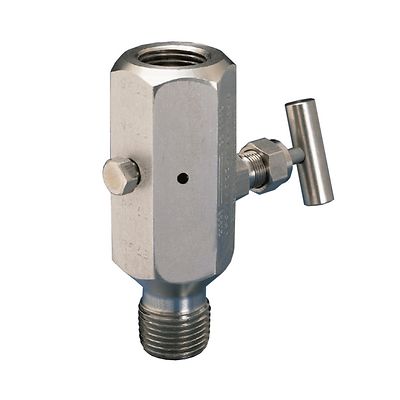

TESCOM™ Anderson Greenwood Instrumentation Series M9 Block and Bleed Gauge Valves

Contact Sales
Request Quote
Consult an Expert

Product Description

A valve with an interchangeable hard or soft seat and an integral bleed plug specifically designed to facilitate safe, compact, economical gauge installation and operation

Products

Search
1-10 of 65 results for Products
:
11156420
TESCOM™ Anderson Greenwood Instrumentation SeriesM9 Block and Bleed M9VIS-44-SG
Max Pressure
6000 psig
Body Material
Stainless Steel
Orifice
0.136"
Connections
1/2" FNPT x 1/2" MNPT
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
Stainless Steel
0.136"
1/2" FNPT x 1/2" MNPT
ADD TO WORKSPACE
11156539
TESCOM™ Anderson Greenwood Instrumentation SeriesM9 Block and Bleed M9VDS-44
Max Pressure
3000 psig
Body Material
316SS
Orifice
0.136"
Connections
1/2" FNPT x 1/2" MNPT
availability
Max Pressure
Body Material
Orifice
Connections
availability
3000 psig
316SS
0.136"
1/2" FNPT x 1/2" MNPT
ADD TO WORKSPACE
11156541
TESCOM™ Anderson Greenwood Instrumentation SeriesM9 Block and Bleed M9VIC-44
Max Pressure
6000 psig
Body Material
Carbon Steel
Orifice
0.136"
Connections
1/2" FNPT x 1/2" MNPT
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
Carbon Steel
0.136"
1/2" FNPT x 1/2" MNPT
ADD TO WORKSPACE
11156543
TESCOM™ Anderson Greenwood Instrumentation SeriesM9 Block and Bleed M9VIS-46
Max Pressure
6000 psig
Body Material
316SS
Orifice
0.136"
Connections
1/2" FNPT x 3/4" MNPT
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
316SS
0.136"
1/2" FNPT x 3/4" MNPT
ADD TO WORKSPACE
11156546
TESCOM™ Anderson Greenwood Instrumentation SeriesM9 Block and Bleed M9VIS-4
Max Pressure
6000 psig
Body Material
316SS
Orifice
0.136"
Connections
1/2" FNPT x 1/2" FNPT
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
316SS
0.136"
1/2" FNPT x 1/2" FNPT
ADD TO WORKSPACE
11156548
TESCOM™ Anderson Greenwood Instrumentation SeriesM9 Block and Bleed M9VIS-44C-SG
Max Pressure
6000 psig
Body Material
316SS
Orifice
0.136"
Connections
1/2" FNPT x 1/2" MSW
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
316SS
0.136"
1/2" FNPT x 1/2" MSW
ADD TO WORKSPACE
11283529
TESCOM™ Anderson Greenwood Instrumentation SeriesM9 Block and Bleed M9VDS-44-SG
Max Pressure
3000 psig
Body Material
316SS
Orifice
0.136"
Connections
1/2" FNPT x 1/2" MNPT
availability
Max Pressure
Body Material
Orifice
Connections
availability
3000 psig
316SS
0.136"
1/2" FNPT x 1/2" MNPT
ADD TO WORKSPACE
11283530
TESCOM™ Anderson Greenwood Instrumentation SeriesM9 Block and Bleed M9VES-44-SG
Max Pressure
6000 psig
Body Material
316SS
Orifice
0.136"
Connections
1/2" FNPT x 1/2" MNPT
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
316SS
0.136"
1/2" FNPT x 1/2" MNPT
ADD TO WORKSPACE
11283765
TESCOM™ Anderson Greenwood Instrumentation SeriesM9 Block and Bleed M9VDC-44
Max Pressure
3000 psig
Body Material
Carbon Steel
Orifice
0.136"
Connections
1/2" FNPT x 1/2" MNPT
availability
Max Pressure
Body Material
Orifice
Connections
availability
3000 psig
Carbon Steel
0.136"
1/2" FNPT x 1/2" MNPT
ADD TO WORKSPACE
11283767
TESCOM™ Anderson Greenwood Instrumentation SeriesM9 Block and Bleed M9VDC-46
Max Pressure
3000 psig
Body Material
Carbon Steel
Orifice
0.136"
Connections
1/2" FNPT x 3/4" MNPT
availability
Max Pressure
Body Material
Orifice
Connections
availability
3000 psig
Carbon Steel
0.136"
1/2" FNPT x 3/4" MNPT
ADD TO WORKSPACE
1
1 2 3 4 5 6 7
1-10 of 65 results

Features

  • Packing below threads prevents lubricant washout, thread corrosion, process contamination and eliminates galling.
  • Easily adjustable packing decreases replacement downtime and increases valve life.
  • Metal-to-metal seated bleed plug enables safe pressure venting without breaking threaded connections.
  • Safety back seating prevents stem blowout or removal during operation and provides a metal-to-metal secondary stem seal while in the fully open position.
  • ENC plated 316 SS prevents galling or freezing of stem threads.
  • Rolled stem, bonnet and male NPT threads provide additional strength.
  • Mirror stem finish in the packing area enables smooth operation and extends packing life.
  • One-piece handle design prevents loss due to vibration or during maintenance.
  • Soft or metal seat for bubble-tight shutoff is field-replaceable for easy maintenance.
  • Extended valve life: damaged soft seat can be removed, leaving a metal seated valve.
