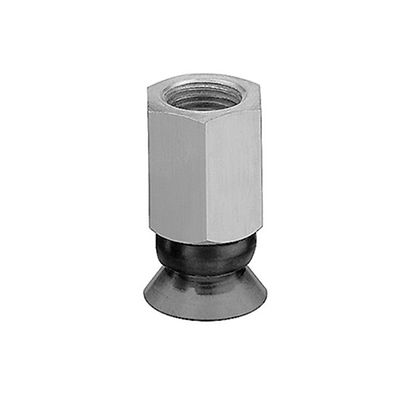

AVENTICS™ Flat suction gripper, Series FSG 1820415172

Min. ambient temperature

-40 °C

Max. ambient temperature

80 °C

Temporary ambient temperature (<30 s) min.

-40 °C

Temporary ambient temperature (<30 s) max.

100 °C

Compressed air connection

G 1/4

external diameter

60 mm

Holding force

130 N

Volume

15 cm³

Max. curving on object Rmin

75 mm

Abrasion value according to DIN 535 16

10-12 mm³

Hardness according to standard

72 ± 5 Shore A

Connection thread type

Internal thread

low-wear

low-wear

Material connector

Aluminum

Suction unit material

Polyurethane

Delivery unit

1 piece

Weight

0.0204 kg
