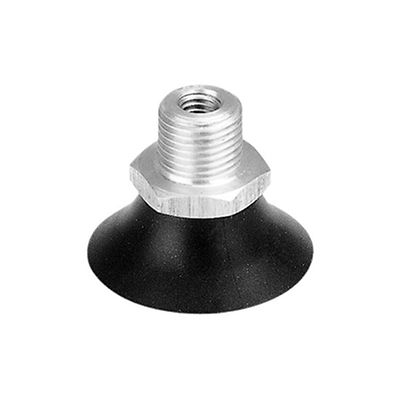

AVENTICS™ Flat suction gripper, Series SGN 2732101000

Min. ambient temperature

-30 °C

Max. ambient temperature

180 °C

Temperature resistance

Heat resistant

Temporary ambient temperature (<30 s) min.

-50 °C

Temporary ambient temperature (<30 s) max.

220 °C

Compressed air connection

M5

external diameter

10 mm

Holding force

4 N

Volume

0.065 cm³

Max. curving on object Rmin

9 mm

Abrasion value according to DIN 535 16

100-120 mm³

Hardness according to standard

55 ± 5 Shore A

Connection thread type

External thread

Material connector

Aluminum

Suction unit material

Fluoromethyl silicone

Delivery unit

1 piece

Weight

0.003 kg
