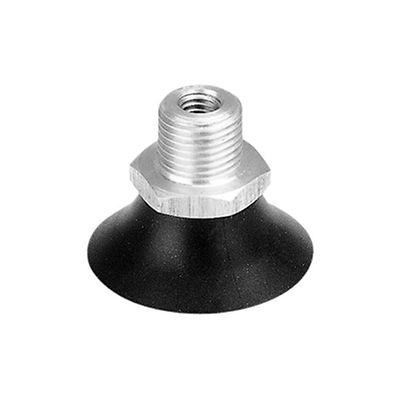

AVENTICS™ Flat suction gripper, Series SGN 2732160000

Min. ambient temperature

-10 °C

Max. ambient temperature

70 °C

Temporary ambient temperature (<30 s) min.

-30 °C

Temporary ambient temperature (<30 s) max.

120 °C

Compressed air connection

M5

external diameter

16 mm

Holding force

8 N

Volume

0.33 cm³

Max. curving on object Rmin

12 mm

Abrasion value according to DIN 535 16

100-120 mm³

Hardness according to standard

55 ± 5 Shore A

Connection thread type

External thread

Material connector

Aluminum

Suction unit material

Acrylonitrile butadiene rubber

Delivery unit

1 piece

Weight

0.004 kg
