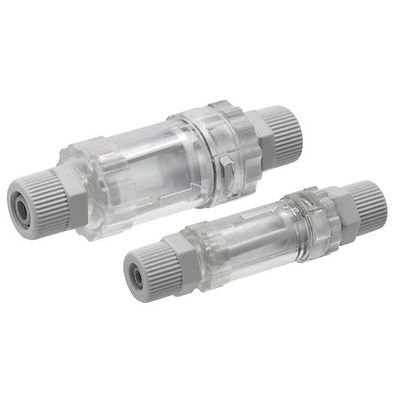

AVENTICS™ Vacuum filter Inline, Series VFI R412010113

Type

Vacuum filter

filter porosity

50 µm

Nominal flow Qn

66 l/min

Min. ambient temperature

0 °C

Max. ambient temperature

50 °C

Medium

Compressed air

Filter element

exchangeable

Weight

0.012 kg

max. overpressure at 25° C

7 bar

max. overpressure at 50°C

5 bar

Max. vacuum level at p.opt

99 %

Mounting

installing in piping

Type

VFI-8/6

External Ø

8 mm

Internal Ø

6 mm

Housing material

Polyamide

Seal material

Acrylonitrile butadiene rubber

Material filter insert

Polyamide, Polypropylene
