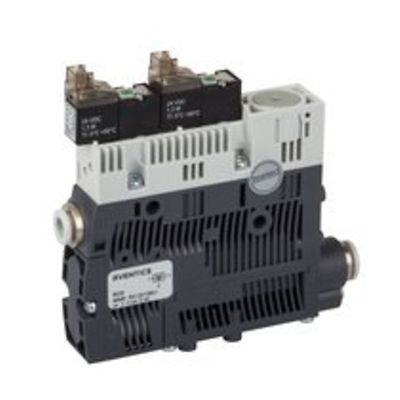

AVENTICS™ compact ejector, Series ECD-BV R412010601

Activation

Electrically

with silencer

with silencer

Nozzle Ø

1 mm

Accessories

with non-return valve

Working pressure min.

2 bar

Working pressure max

6 bar

Working pressure p.opt.

4 bar

Min. ambient temperature

0 °C

Max. ambient temperature

50 °C

Min. medium temperature

0 °C

Max. medium temperature

50 °C

Medium

Compressed air

Oil content of compressed air min.

0 mg/m³

Oil content of compressed air max.

1 mg/m³

Max. particle size

5 µm

Max. suction capacity

35.4 l/min

Air consumption at p.opt.

46.2 l/min

Max. vacuum level at p.opt

81.5 %

Sound pressure level intake effect

63 dB

Sound pressure level intake effect

76 dB

release valve

release valve

Protection class according to EN 60529:2000, without electrical connector

IP40

Duty cycle according to DIN VDE 0580 standard

100 %

DC operating voltage

24 V

Voltage tolerance DC

- 5% / +10%
