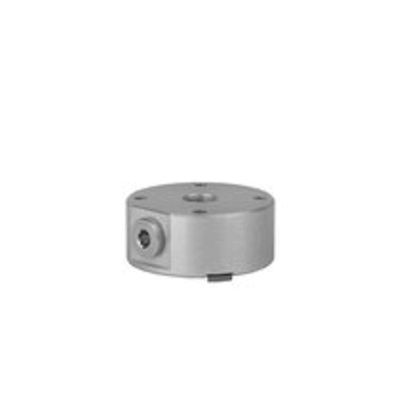

AVENTICS™ Non-contact transport system, Series NCT-AL R412010640

Compressed air connection

G 1/8

Lifting force at 5 bar

46 N

Diameter

100 mm

Type

Bernoulli principle

Air consumption at 5 bar

228 l/min

Working pressure min.

1 bar

Working pressure max

6 bar

Min. ambient temperature

5 °C

Max. ambient temperature

60 °C

Medium

Compressed air

Oil content of compressed air min.

0 mg/m³

Max. particle size

40 µm

Housing material

Aluminum

Material stop

High-temperature material HT1

Nozzle material

Stainless Steel

Material blanking screw

Brass

Seal material

Nitrile butadiene rubber

Weight

0.3 kg
