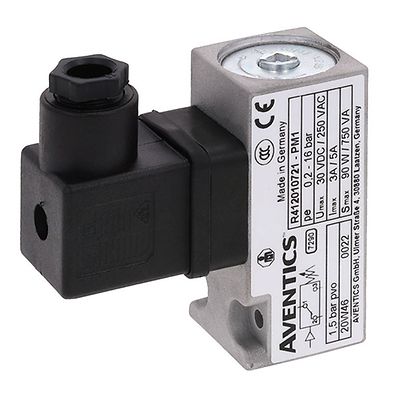

AVENTICS™ Pressure Switches, Series PM1, flange, form A, With valve plug connector R412010714

Type

Mechanical

Type

Diaphragm, spring loaded, adjustable

Mounting orientation

Any

Operating pressure min

-0.9 bar

Operating pressure max

0 bar

Protection against overpressure

80 bar

Operational voltage

12-125 V DC, 12-250 V AC

Max. shock resistance

15 g IEC 60068 - 2-64

Vibration resistance

10 g (60 - 500 Hz) IEC 60068 - 2-6

Precision (% of full scale value)

± 2 %

Hysteresis

max. switching pressure difference

Measurement

Relative pressure

Compressed air connection

Ø 5x1,5

Compressed air connection type

Flange with O-ring

Min. medium temperature

-10 °C

Max. medium temperature

80 °C

Medium

Compressed air, Hydraulic oil

Valve plug connector

With valve plug connector

Electrical connection type

Plug

Electrical connection size

EN 175301-803, form A

Min. ambient temperature

-20 °C

Max. ambient temperature

80 °C

Switching element

microswitch (input/output)

Max. switching frequency

100/min.

Switching point

adjustable
