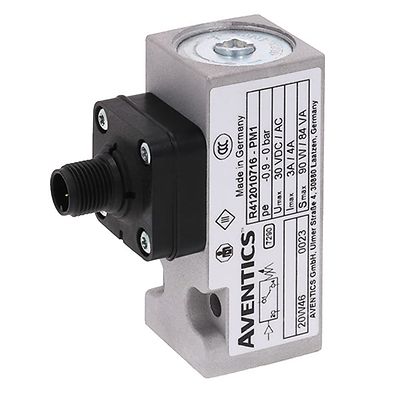

AVENTICS™ Pressure Switches, Series PM1, M12, -0,9 - 0 bar R412010716

Type

Mechanical

Type

Diaphragm, spring loaded, adjustable

Mounting orientation

Any

Operating pressure min

-0.9 bar

Operating pressure max

0 bar

Protection against overpressure

80 bar

Operational voltage

12-125 V DC, 12-30 V AC

Max. shock resistance

15 g IEC 60068 - 2-64

Vibration resistance

10 g (60 - 500 Hz) IEC 60068 - 2-6

Precision (% of full scale value)

± 2 %

Hysteresis

max. switching pressure difference

Measurement

Relative pressure

Compressed air connection

G 1/4

Compressed air connection type

Internal thread

Min. medium temperature

-10 °C

Max. medium temperature

80 °C

Medium

Compressed air, Hydraulic oil

Electrical connection type

Plug

Electrical connection size

M12x1

Min. ambient temperature

-20 °C

Max. ambient temperature

80 °C

Switching element

microswitch (input/output)

Max. switching frequency

100/min.

Switching point

adjustable

Protection class

IP65
