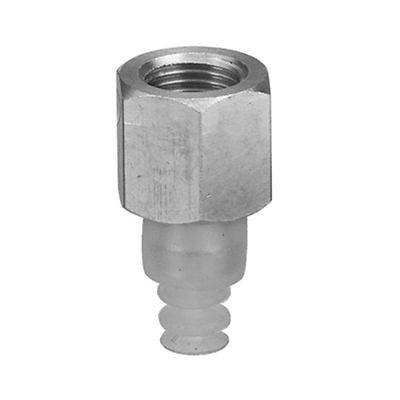

AVENTICS™ Bellow suction gripper, BSA series 1820415079

Min. ambient temperature

-30 °C

Max. ambient temperature

180 °C

Temperature resistance

Heat resistant

Temporary ambient temperature (<30 s) min.

-50 °C

Temporary ambient temperature (<30 s) max.

220 °C

Compressed air connection

G 1/8

external diameter

14.5 mm

Holding force

1.2 N

Separation force

5.7 N

Volume

0.98 cm³

Max. curving on object Rmin

15 mm

Abrasion value according to DIN 535 16

180-200 mm³

Hardness according to standard

55 ± 5 Shore A

Connection thread type

Internal thread

Material connector

Aluminum

Suction unit material

Fluoromethyl silicone

Delivery unit

2 piece

Weight

0.006 kg
