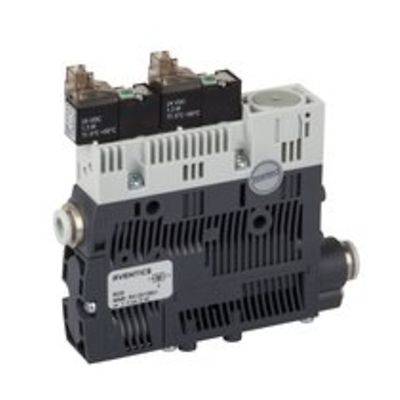

AVENTICS™ compact ejector, Series ECD-BV R412010602

Activation

Electrically

Switching logic

NC (break contact)

with silencer

with silencer

Nozzle Ø

1 mm

Accessories

with non-return valve

Min. working pressure

2 bar

Max. working pressure

6 bar

Working pressure p.opt.

4 bar

Min. ambient temperature

0 °C

Max. ambient temperature

50 °C

Min. medium temperature

0 °C

Max. medium temperature

50 °C

Medium

Compressed air

Min. oil content of compressed air

0 mg/m³

Max. oil content of compressed air

1 mg/m³

Max. particle size

5 µm

Max. suction capacity

35.4 l/min

Air consumption at p.opt.

46.2 l/min

Max. vacuum level at p.opt

81.5 %

Sound pressure level intake effect

63 dB

Sound pressure level intake effect

76 dB

release valve

release valve

Protection class according to EN 60529:2000, without electrical connector

IP40

Duty cycle according to DIN VDE 0580 standard

100 %

Operational voltage DC

24 V
