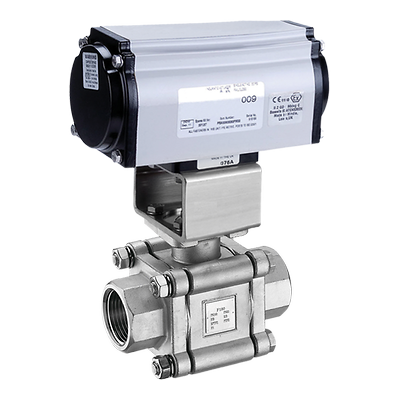

K-Ball Figure 180 Floating Ball Valve with Powered Actuator

Descripción del producto

The K-Ball Figure 180 is a three-piece heavy duty floating ball valve complete with powered actuator, configurable by power source, size, function and more.

Comuníquese con el equipo de ventas

Más información

Agregar a workspace

Características

Válvula de bola flotante K-Ball serie 182

Diseño de doble cierre del eje
Válvula de bola de tres piezas, para servicios exigentes
Placa superior de montaje ISO 5211
Cuerpos de acero al carbono o acero inoxidable
Opciones disponibles de material del asiento
Diseño de pernos completamente cerrados
Diseños de orificio reducido y total
Opciones de material de asiento disponibles.
Eje a prueba de expulsión y diseño antiestático
Apriete según EN 12266-1 Clase A y API 598
Configuración de ignífuga probada según API 607 séptima edición/ISO 10497:2010

Emerson Powered Actuator

Direct mounting to all Keystone butterfly valves and ball valves.
Valve connection compatible with Keystone (imperial and metric) and ISO 5211.
Double Rack and Pinion design nullifies side loads on the pinion shaft, minimizing bearing wear and extending life.
Optimized product flow with standard mounted travel stops for valve position adjustment in open and close position (+/- 5° at each end).
Anodized aluminium body with electrostatic powder coating (ESPC) finish provides durable protection against corrosive environments.
Double acting and spring return versions available for cost effective and safe operation.
Up to 12 individual springs offer flexible torque range for both ball as butterfly valves.
Pre-compressed spring design and anti-blowout drive pinion means safe maintenance and operation.
