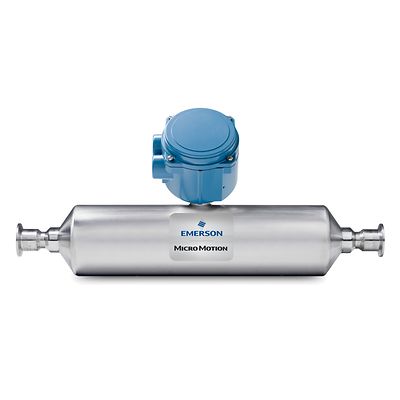

Micro Motion T025F Straight Tube Coriolis Meter, 1/4 Inch (DN6), Titanium Grade 9, 15 Ra Finish

Micro Motion T025F Straight Tube Coriolis Meter, 1/4 Inch (DN6), Titanium Grade 9, 15 Ra Finish

Warning

Taking this action may invalidate your quote. Do you wish to proceed?
Proceeding will convert your shopping cart into a standard order so that you can make changes.

Proceed

Cancel

Warning

Taking this action may invalidate your quote. Do you wish to proceed?
Proceeding will convert your shopping cart into a standard order so that you can make changes.

Proceed

Cancel

Assembly Options

Configure

Calculate Line Size

Learn About

ADD TO WORKSPACE

Product Description

A Titanium grade 9, single, straight-tube Coriolis flow and density meter with 15 Ra surface finish that is drainable with a plug-resistant flow path.

PRODUCTS
Specifications
Features
Documents & Drawings

Products

Search Search

Press enter to collapse or expand the menu.

Filters

Clear All

Filter by:

Brands

Sort alphabetically Sort by number of results

Facet Value

Micro Motion
(9)
Micro Motion
(9)

Product Type

Sort alphabetically Sort by number of results

Facet Value

Flow Meter
(9)
Flow Meter
(9)

Technology

Sort alphabetically Sort by number of results

Facet Value

Coriolis
(9)
Coriolis
(9)

Family

Sort alphabetically Sort by number of results

Facet Value

Flow - Coriolis
(9)
Flow - Coriolis
(9)

Product List

1-9 of 9 results for Products Clear Search

[ { "catentry_id" : "5514895", "Attributes" : { } } ]

Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T025F Sensor and 2700 Transmitter

T025F

2700

Configure

ADD TO WORKSPACE

Compare

[ { "catentry_id" : "5514872", "Attributes" : { } } ]

Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T025F Sensor and 1500 Transmitter

T025F

1500

Configure

ADD TO WORKSPACE

Compare

[ { "catentry_id" : "5514873", "Attributes" : { } } ]

Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T025F Sensor and 1700 Transmitter

T025F

1700

Configure

ADD TO WORKSPACE

Compare

[ { "catentry_id" : "5514897", "Attributes" : { } } ]

Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T025F Sensor and 3700 Transmitter

T025F

3700

Configure

ADD TO WORKSPACE

Compare

[ { "catentry_id" : "5514896", "Attributes" : { } } ]

Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T025F Sensor and 3500 Transmitter

T025F

3500

Configure

ADD TO WORKSPACE

Compare

[ { "catentry_id" : "5514874", "Attributes" : { } } ]

Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T025F Sensor and 2500 Transmitter

T025F

2500

Configure

ADD TO WORKSPACE

Compare

[ { "catentry_id" : "3074457345628361677", "Attributes" : { } } ]

Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T025F Sensor and 2400 Transmitter

T025F

2400S

Configure

ADD TO WORKSPACE

Compare

[ { "catentry_id" : "3074457345628361697", "Attributes" : { } } ]

Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T025F Sensor and 4200 Transmitter

T025F

4200

Configure

ADD TO WORKSPACE

Compare

[ { "catentry_id" : "3074457345648354263", "Attributes" : { } } ]

Micro Motion™ T-Series Straight Tube Coriolis Meter Consisting of T025F Sensor and 1600 Transmitter

T025F

1600 Compact Flow Transmitter

Configure

ADD TO WORKSPACE

Compare

{ searchResult: { pageSize: 23, searchTerms: '', totalPageNumber: 1.0, totalResultCount: 9, currentPageNumber:1, attributes: "" } }

Compare Add more to compare Added

Specifications

Download Full Specs

Mass flow accuracy (Liquid): ±0.15% of rate

Mass flow repeatability (Liquid): ±0.05% of rate

Volume flow accuracy (Liquid): ±0.25% of rate

Volume flow repeatability (Liquid): ±0.05% of rate

Mass flow accuracy (Gas): ±0.50% of rate

Mass flow repeatability (Gas): ±0.05% of rate

Density accuracy (Liquid): ±0.002 g/cm3 (±2.0 kg/m3)

Density repeatability (Liquid): ±0.0005 g/cm3 (±0.5 kg/m3)

Temperature accuracy: ±1 °C ±0.5% of reading

Sensor maximum working pressure: 1,450 psig (100 barg)

Meter approvals, calibrations, and certifications: •CSA
•ATEX
•ASME
•3-A
•USDA
•EHEDG

Features

Download Case Study

Achieve direct, in-line measurement of mass flow, density, concentration and volume flow and temperature from one device
Choose available titanium construction for compatibility with most fluids
Meet virtually any connectivity needs with a wide range of transmitter offerings
Use with hygienic applications with an improved 15 and 32 rA surface and EHEDG, certified, 3-A authorized and ASME BPE
Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR
Save time with a design that is easy to clean in place (CIP) and steam in place (SIP)
Simplify installation with a highly robust design that doesn't need straight runs or flow conditioning
