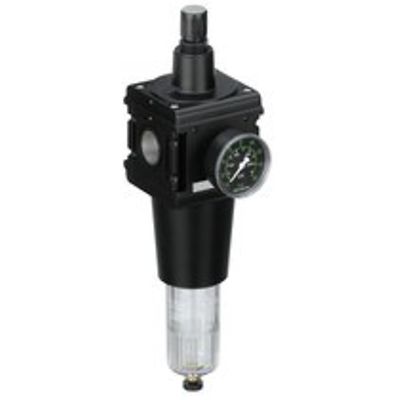

AVENTICS™ Filter pressure regulator, Series NL6-FRE 0821300132

Parts

Filter pressure regulator

Reservoir

reservoir, polycarbonate, without protective guard

Port

G 1

Nominal flow Qn

15000 l/min

Filter porosity

5 µm

Condensate drain

semi-automatic, open without pressure

Pressure gauge

with pressure gauge

Working pressure min.

1.5 bar

Working pressure max

16 bar

Min. ambient temperature

-10 °C

Max. ambient temperature

60 °C

Regulation range min.

0.5 bar

Regulation range max.

10 bar

Lock type

not lockable

Type

1-part

Type

Can be assembled into blocks

Pressure supply

single

Mounting orientation

vertical

Regulator type

Diaphragm-type pressure regulator

Regulator function

with relieving air exhaust

Max. Internal air consumption

0.5 l/min

Filter element

exchangeable

Filter reservoir volume

125 cm³

Max. achievable compressed air class acc. to ISO 8573-1:2010

6 : 7 : -

Medium

Compressed air, Neutral gases
