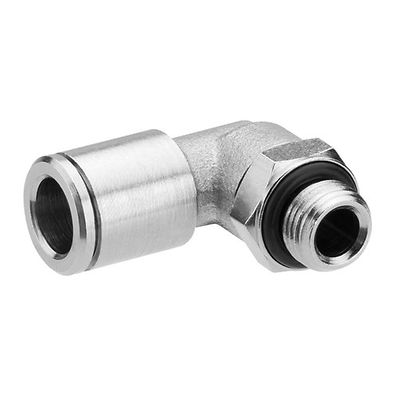

AVENTICS™ Series QR2-S-RVT standard R412007687

Fitting type

rotatable, Elbow fitting

Compressed air connection type

External thread

Port G

G 1/8

Compressed air connection type 2

push-in fitting

Port D

Ø 10

Type

QR2-S-RVT

Working pressure min.

-0.95 bar

Working pressure max

16 bar

Min. ambient temperature

-20 °C

Max. ambient temperature

80 °C

Delivery unit

5 piece

Weight

0.032 kg

Housing material

Brass

Seal material

Acrylonitrile butadiene rubber

Material tooth lock washer

Stainless Steel

Material release ring

Brass

Material thread

Brass
