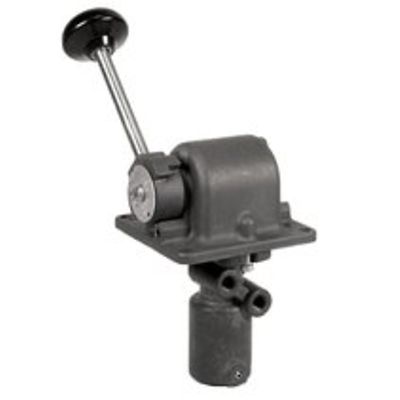

AVENTICS™ Pressure regulators, Series M Plus™ R431000659

Type

Poppet valve

Type

M-2-F Friction retained handle

Compressed air connection input

1/8-27 NPTF

Compressed air connection output

1/8-27 NPTF

Working pressure min.

0 bar

Working pressure max

10.3 bar

Regulation range min.

0 bar

Regulation range max.

4.1 bar

Min. ambient temperature

-40 °C

Max. ambient temperature

71 °C

Min. medium temperature

-40 °C

Max. medium temperature

71 °C

Medium

Compressed air

Max. particle size

50 µm

Oil content of compressed air min.

0 mg/m³

Oil content of compressed air max.

1 mg/m³

Nominal flow Qn

200 l/min

Weight

0.75 kg
