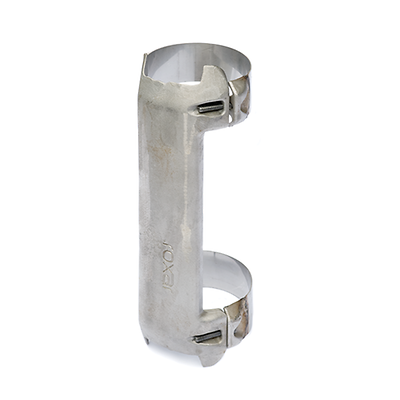

Roxar-Cable Protectors

Roxar™ Downhole Clamps & Cable Protectors

Product Description

Emerson has a solid track record for delivering high quality cable protectors for more than thirty years. Cable protectors are one of the top factors for a successful installation and reliable long-term operation. Roxar’s cross-coupling protectors are designed to protect the downhole cable’s integrity for the length of the production string. Without the added protection, the cable can become damaged leading to malfunction or shortened life of downhole completions equipment. The protector’s design allows for efficient installation in less than forty-five seconds. Roxar cable protectors can be used on cables and flatpacks for permanent downhole gauges, chemical injection, subsurface safety valve and other applications.

Specifications

Materials of Construction
Magnetic duplex
Pipe Size
Tubing Size: 5-1/2" and 7"
Connection Type(s)
Tubing Thread: VAM Top, VAM 21
Cable slot
57mm (2.24")
Cable Clamping Force
Up to 100m of cable length
Certifications/Approvals
NACE MR0175-2021/ISO 15156 compliant for H2S containing environment

Features

  • Very slim design
  • Equipped with a bolt locking mechanism which minimizes the risk of components loosening due to vibrations or impact while being run in hole or during production
  • No loose parts that could be lost in the wellbore
  • Qualified to industry standards, like TR2385
  • Profiled design, with smooth edges and transitions
  • Integrated construction with no loose and hinged parts
  • Non-destructive testing (NDT) of all welds
