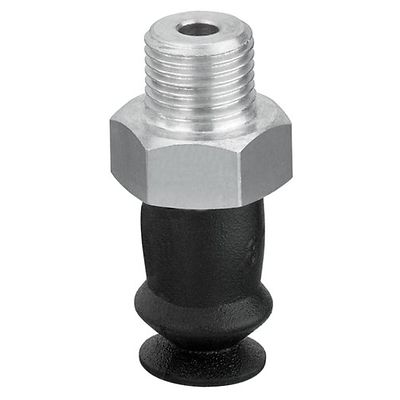

AVENTICS™ Bellow suction gripper, BSG series 1820415047

Min. ambient temperature

-10 °C

Max. ambient temperature

70 °C

Temporary ambient temperature (<30 s) min.

-30 °C

Temporary ambient temperature (<30 s) max.

120 °C

Compressed air connection

G 1/4

external diameter

38 mm

Holding force

22.8 N

Separation force

64.5 N

Volume

9.25 cm³

Max. curving on object Rmin

60 mm

Abrasion value according to DIN 535 16

100-120 mm³

Hardness according to standard

55 ± 5 Shore A

Connection thread type

External thread

Material connector

Aluminum

Suction unit material

Acrylonitrile butadiene rubber

Delivery unit

1 piece

Weight

0.019 kg
