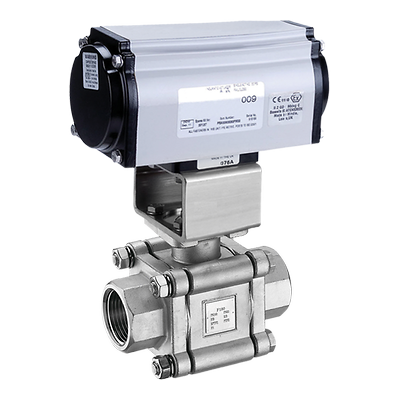

K-Ball Figure 180 Floating Ball Valve with Powered Actuator

Product Description

The K-Ball Figure 180 is a three-piece heavy duty floating ball valve complete with powered actuator, configurable by power source, size, function and more.

Contacter l’équipe commerciale

Ajouter à l’espace de travail

Caractéristiques

Vanne à boule flottante K-Ball série 182

Conception d’arbre à double étanchéité
Robinet à tournant sphérique, usage intensif
Platine de montage supérieure, ISO 5211
Corps en acier carbone ou en acier inoxydable
Choix de matériaux de siège
Conception de boulonerie entièrement fermée
Conceptions de vannes à passage intégral et réduit
Choix de matériaux de siège disponible.
Conception d’arbre antistatique et inéjectable
Étanchéité selon la norme EN 12266-1, niveau A et API 598
Configuration sécurité feu testée pour l’API 607 7, édition/ISO 10497:2010

Emerson Powered Actuator

Direct mounting to all Keystone butterfly valves and ball valves.
Valve connection compatible with Keystone (imperial and metric) and ISO 5211.
Double Rack and Pinion design nullifies side loads on the pinion shaft, minimizing bearing wear and extending life.
Optimized product flow with standard mounted travel stops for valve position adjustment in open and close position (+/- 5° at each end).
Anodized aluminium body with electrostatic powder coating (ESPC) finish provides durable protection against corrosive environments.
Double acting and spring return versions available for cost effective and safe operation.
Up to 12 individual springs offer flexible torque range for both ball as butterfly valves.
Pre-compressed spring design and anti-blowout drive pinion means safe maintenance and operation.
