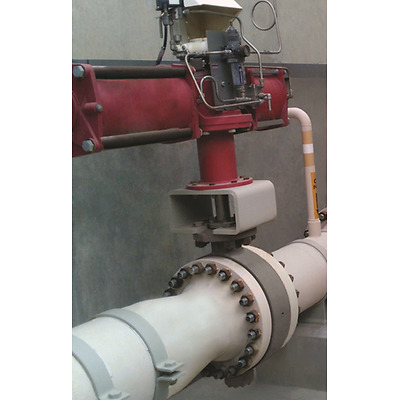

Vanessa-series 30000 GOX

Vanessa™ Series 30,000 Triple Offset Valve for Gaseous Oxygen (GOX)

Product Description

This Vanessa Series 30,000 Triple Offset Valve configuration features a full metal construction, frictionless trim rotation, and torque seating. This, combined with innovative material selection and a dedicated manufacturing process, ensures outstanding isolation and control functions at high pressures in gaseous oxygen (GOX) applications.

Features

  • Robust, fire-resistant, inherently antistatic all-metal construction.
  • Burn-resistant Stellite® grade 21 seat overlay provides excellent durability.
  • Die formed packing rings, obtained from Sigraflex® unreinforced foil, are oxygen compatible and oxidation resistant.
  • Two-piece packing gland minimizes external emission risk.
  • Nitronic® 50 round solid seal ring (or copper beryllium alloy in case of Monel valve body) with molybdenum disulfide dry antifriction coating tested for oxygen compatibility.
  • Robust one-piece shaft is designed to transfer/maintain torque efficiently.
  • Key secured shaft-to-disc connection ensures maximum shaft integrity.
  • Handling of shaft extrusion risk in compliance with international standards.
  • Spot-faced flanges ensure maximum joint-to-pipe integrity.
  • Screw securing ring eliminates risk of in-pipe screw dispersion.

Specifications

Range
NPS 6 to 24 - ASME Class 300
DN 150 to 600 - EN PN 40
(Stainless Steel)
NPS 6 to 24 - ASME Class 600 and 900
(Monel)
Pressure Rating
ASME Class 300, 600, 900 (EN PN 40)
Max service temperature
200°C (392°F)
Body Material
Stainless Steel; Monel
Design Standard
API 609 and EN 593; ASME B16.34 and EN 12516-1
Flange Compatibility
ASME B16.5; ASME B16.47; EN 1092-1
Face-to-Face Design
ISO 5752; API 609; EN 558
Applications
Air Separation Unit (ASU), iron and steel industry, chemical, petrochemical, aerospace industry and more.
