Microgrid Controller and Control Systems

A microgrid controller is a dedicated hardware and software platform responsible for executing real-time control strategies to balance local generation and electrical load. Operating either grid-tied or in autonomous "island mode," the controller dynamically regulates diverse distributed energy resources (DERs) - including solar photovoltaics (PV), wind turbines, battery energy storage systems (BESS), and diesel/gas generators. It maintains power quality by strictly adhering to voltage and frequency stability thresholds, managing the point of common coupling (PCC), and executing seamless, high-speed transitions during macrogrid disruptions.

A microgrid control system is the comprehensive automation architecture that wraps around individual controllers, incorporating Human-Machine Interfaces (HMIs), engineering tools, alarm management, historical data archiving, and cybersecurity frameworks. It acts as the supervisory authority over the entire power island, orchestrating automated sequences like load shedding, black-start recovery, and economic dispatch. By unifying communication across all generation and storage assets, it provides operators with a single pane of glass to reduce energy costs and protect mission-critical uptime.

The system detects anomalies by processing high-frequency data streams directly from smart breakers, protection relays, and asset inverters. The Ovation system continuously compares real-time metrics against first-principles thermodynamic and electrical models. If voltage sags, frequency deviations, or thermal anomalies break pre-configured threshold barriers, the control logic triggers automated sub-second isolations or load-shedding sequences before the anomaly can cascade into a facility outage.

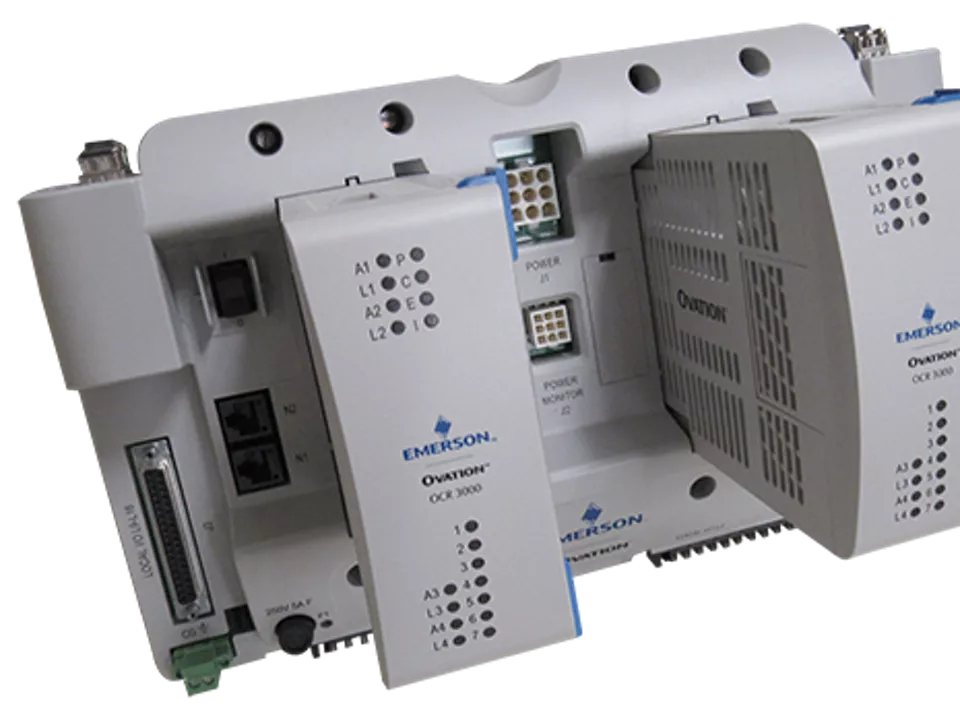

Interoperability is achieved via a robust embedded communication layer that translates diverse multi-vendor protocols into a unified control structure. The Ovation microgrid controller utilizes native data link protocols and industrial standards including IEC 61850, DNP3, and Modbus TCP/IP. This allows the controller to communicate directly with third-party battery management systems (BMS), PV inverters, and intelligent electronic devices (IEDs), aligning disparate hardware into a single, synchronized response loop.

Operators utilize integrated diagnostic suites that combine real-time process graphics, sequential events recording (SER) with millisecond-accuracy time-stamping, and advanced alarm management. When a distribution fault occurs, the control system charts the precise sequence of breaker trips and power fluctuations. This allows engineering teams to perform root-cause analysis, differentiate between external grid transients and internal component failures, and safely execute system restoration.

Selection requires matching a platform's deterministic speed and scalability with the data center's strict reliability targets (such as 99.99% availability). A viable data center microgrid solution must provide sub-cycle fault response, seamless N+Z islanding transitions, and the capacity to scale as more power island segments are built out. The platform should natively combine electrical control (breakers/switchgear) and energy management (BESS/generation optimization) under a single, redundant control processor to eliminate cross-system latency.

The architecture relies on a split-horizon approach: high-level optimization platforms (such as the AspenTech Microgrid Management System) process macrogrid pricing, fuel costs, and weather forecasts to determine the most cost-effective, 24-hour dispatch strategy. The underlying microgrid control system receives these strategic targets and translates them into real-time operational commands - safely modulating generator output and BESS charge/discharge cycles to match instantaneous load swings.
