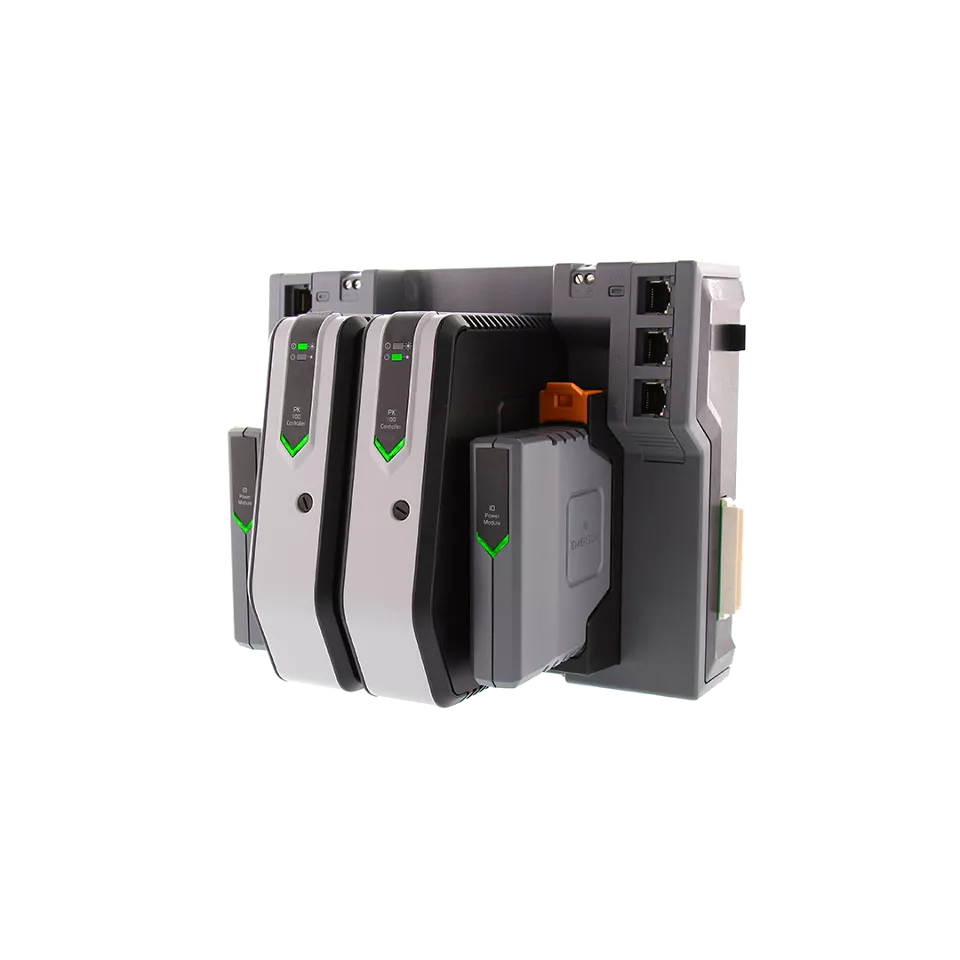

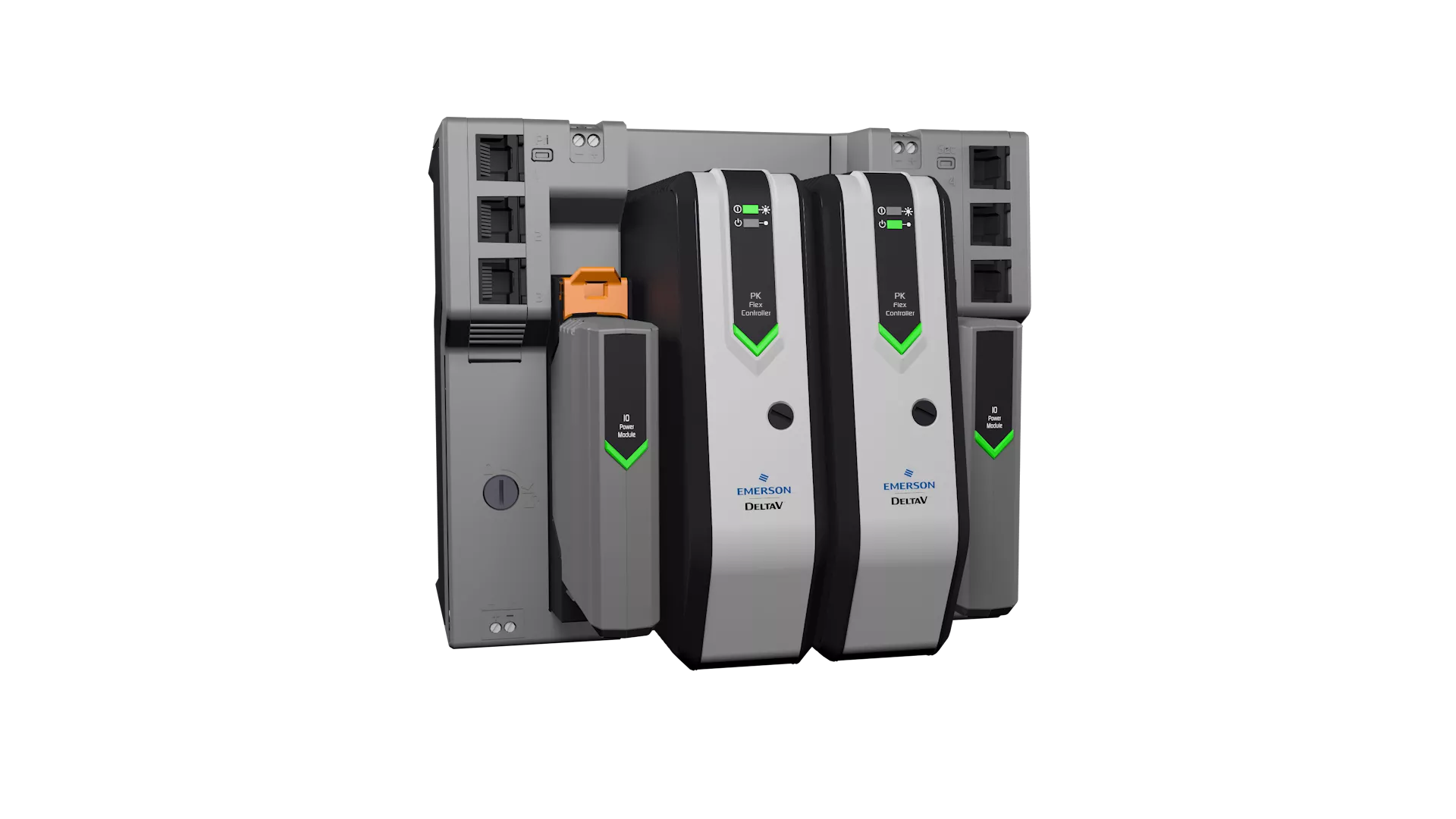

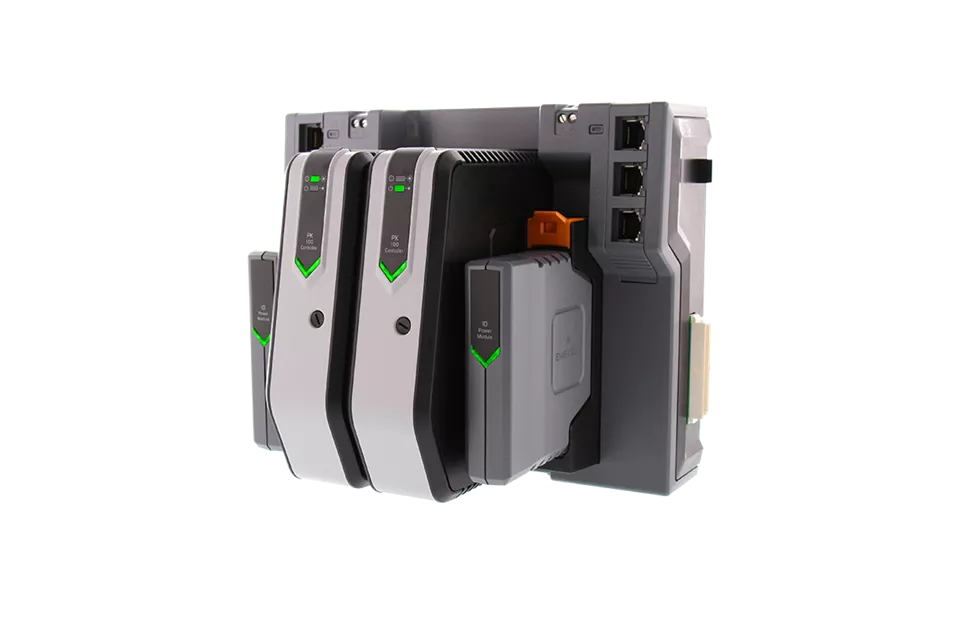

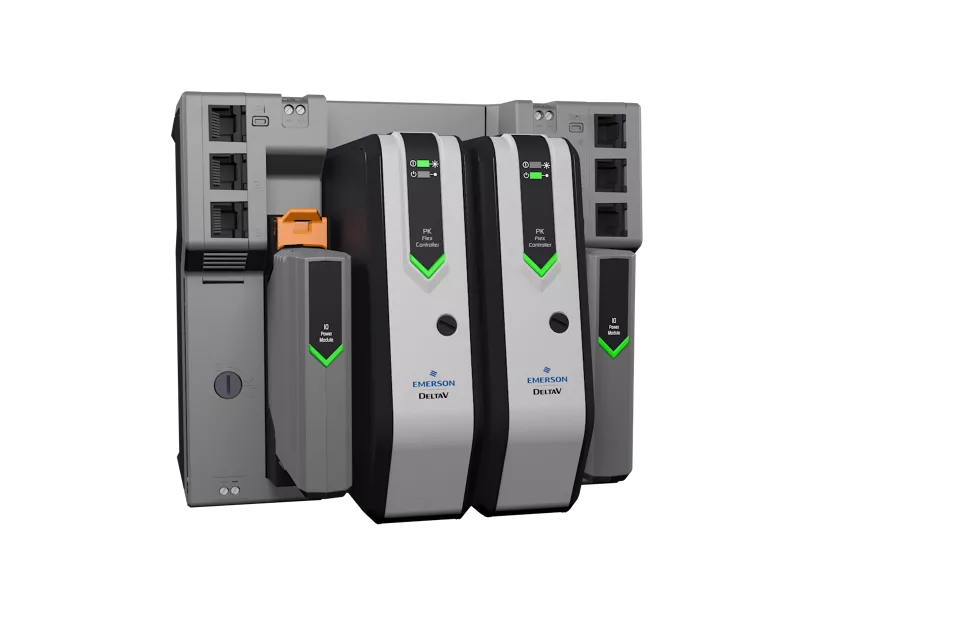

The DeltaV PK Flex Controller builds upon the proven innovation and technology of the DeltaV PK Controller, delivering the same powerful functionality with new flexibility. Its subscription-based, scalable licensing model lets you subscribe only to the functionality you need and expand at any time. This approach reduces upfront capital costs and allows you to shift investments to your OPEX budget.
Easy Engineering with Software-Scalable Capacity
Eliminate the need for detailed or time-intensive engineering and determining Device Signal Tag (DST) capacity at the start of your project. Easily expand capacity at any time by adding software subscription-based licenses — starting with as few as 50 DSTs and scaling up to 1,500 DSTs per PK Flex Controller.
Simple Project Sizing with Flex DST
With Flex DST, you only need to know the amount of I/O, not the type, simplifying the engineering and planning capacity of the project.
Reduced Project Cost
Significantly reduce project capital costs by moving to a subscription-based license, paying only for what you need, when you need it, over time rather than upfront. This shifts expenses to operational spending and helps accelerate ROI.
Increased Affordability for Future Hardware Updates
With term-based licensing, purchase the controller at a lower cost, making it more affordable to replace controllers often and stay up to date with the latest CPU and memory. This keeps the system evergreen, running new functionality with confidence that future controllers will support it.
Lower Initial Investment with Easy-to-Order Base Software Package for DeltaV DCS
The DeltaV Flex System is a full-featured DeltaV DCS that combines term-based software licensing, product support, and extended hardware warranty in a single, packaged solution. Leveraging the PK Flex Controller, it lowers the upfront cost for systems of any size.
Hardware Warranty
As part of your subscription, the support for your PK Flex hardware is included.
Features
- Available as a subscription for increased flexibility and reduced capital expenditures
- Eliminates time-consuming and costly data mapping exercises
- Saves cabinet space with six built-in Ethernet ports
- Supports 1:1 redundancy without adding footprint or requiring configuration changes
- Flexible I/O supports M-series traditional, S-series traditional CHARMs I/O card, and Wireless I/O cards to best suit your system needs
- Integrated safety with DeltaV SIS Electronic Marshalling and DeltaV SIS 1508 Safety Logic Solver
- Easily connect third-party devices, including Panel HMIs and variable speed drives natively, without dedicated Ethernet or I/O cards
- Secured access with multiple layers of protection and encryption to prevent unauthorized access
- Faster logic execution for improved system performance
Specifications
DST Limit | 50 up to 1500 | |
Module Execution Rates | 25ms, 50ms, 100ms, 500ms, 1s, 2s, 5s, 10s, 30s, 60s | |
User Memory | Controller memory | |
Input Power Required | 24V DC | |
Protocols Supported Natively on PK FLEX Controller | Modbus TCP (Server & Client), Ethernet/IP (Client: Class 1 & Class 3), OPC UA Server, and PROFINET (Controller). APL transmitters are supported under PROFINET. Other protocols available. | |
Operating Temperature | −40° to 60°C (-40° to 140°F) | |
Storage Temperature | −40° to 85°C (-40° to 185°F) | |
Relative Humidity | 5 to 95%, non-condensing Protection Rating IP20, NEMA 12 | |
Airborne Contaminants | ISA-S71.04-1985 Airborne Contaminants Class G3 Conformal Coating Shock (Normal Operating Conditions) 10g ½-sine wave for 11ms | |
Vibration (Operative Limit) | 1mm peak-to-peak from 5Hz to 13.2Hz, 0.7g from 13.2Hz to 150Hz |
