Powerful Standalone. Easily Integrated.
Offering the most versatile control solution on the market, the DeltaV PK Controller can be implemented for small-scale applications such as skid units to your large-scale traditional control applications.
The fit-for-purpose controller can act as a standalone system and seamlessly merge into a larger DeltaV system, resulting in a single native database and system - allowing you to shorten project schedules and accommodate late changes.
The DeltaV PK Controller handles your toughest demands no matter the size or stage of your operation. With faster logic execution, built-in native Ethernet ports and native device protocols, the DeltaV PK Controller addresses a wide variety of applications and system sizes.
How It Works

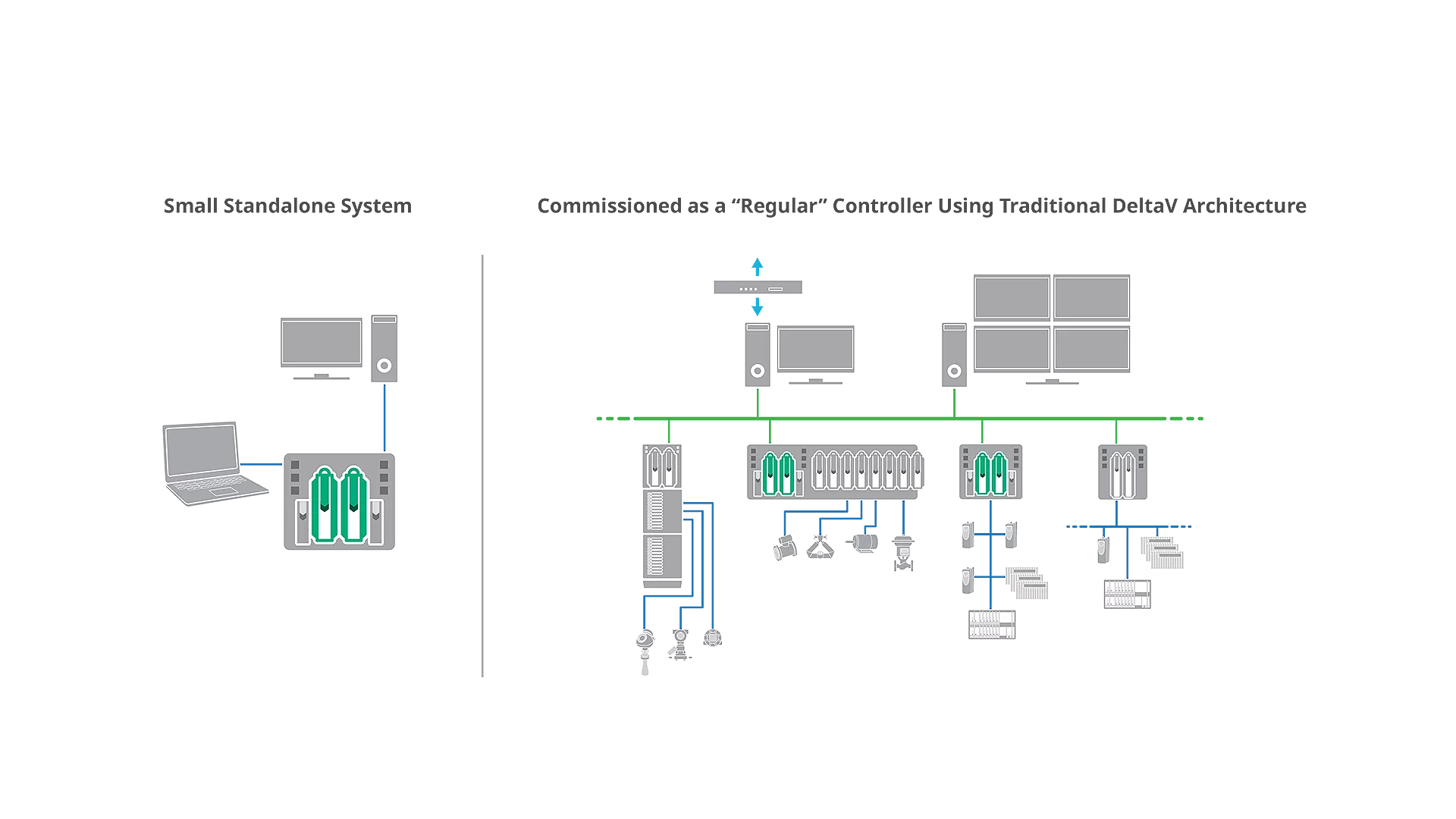

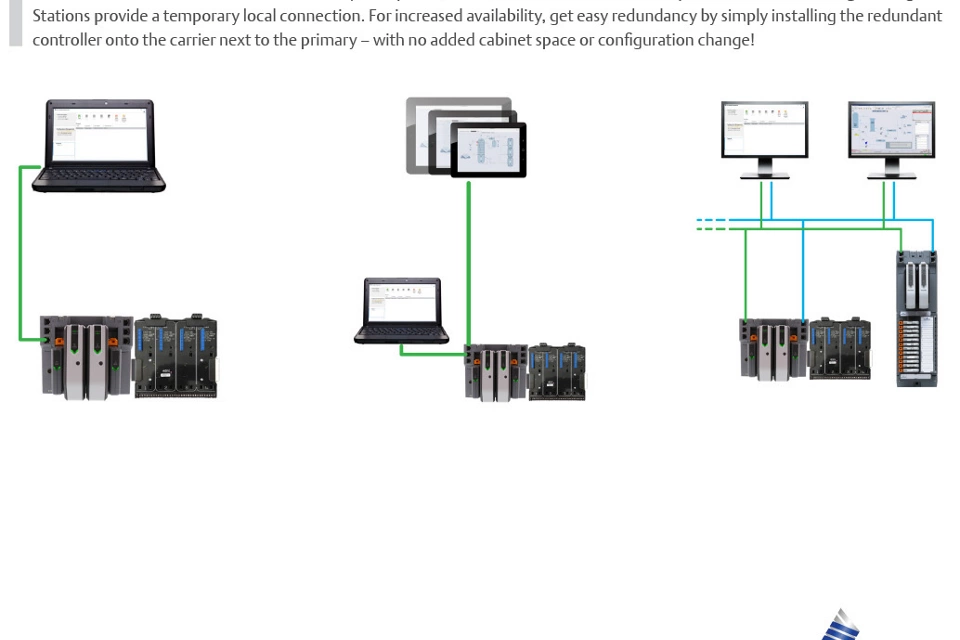

Flexible Operating Environments
Designed to operate in standalone fashion the PK Controller operates without connecting to a server, panel HMI, or additional distributed control system elements.
In addition it can be configured as a native node on DeltaV DCS systems delivering a solution for faster control applications.

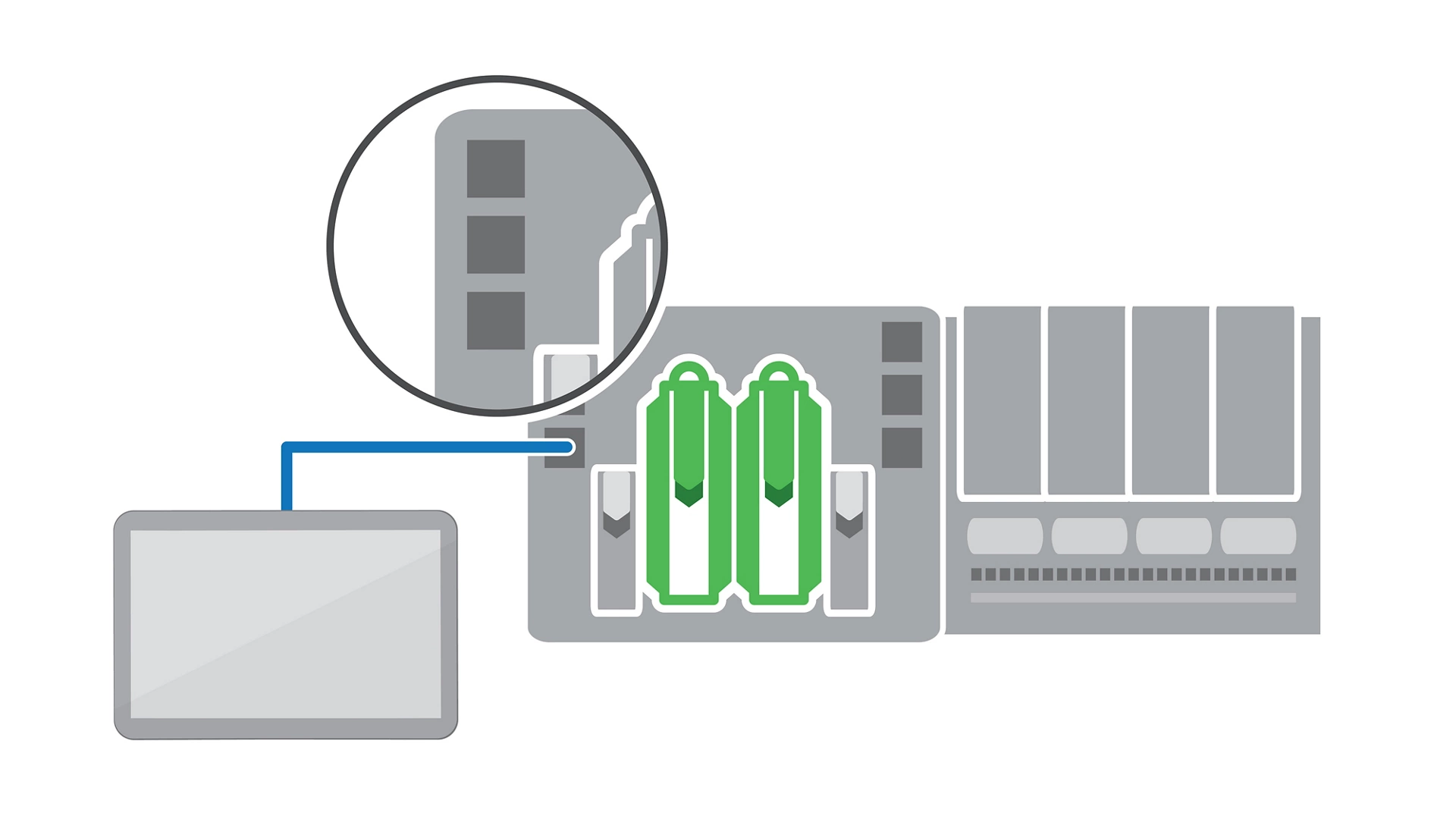

Reduce Footprint
- Easy Redundancy – eliminate the splitting of I/O in different carriers/chasis adding more cost and footprint. The PK Controller enables you to add a redundant controller onto the carrier next to the primary without adding footprint or making configuration changes.
- Readily Connect to Third-Party Devices - easily connect third-party devices such as panel HMIs and variable speed drives natively without the use of a dedicated Ethernet or I/O card.
- Ethernet Device Control Management - using six built-in Ethernet ports, the need for switches is eliminated in many applications. Native protocols include OPC UA Server, Modbus TCP client & server, and Ethernet/IP client.

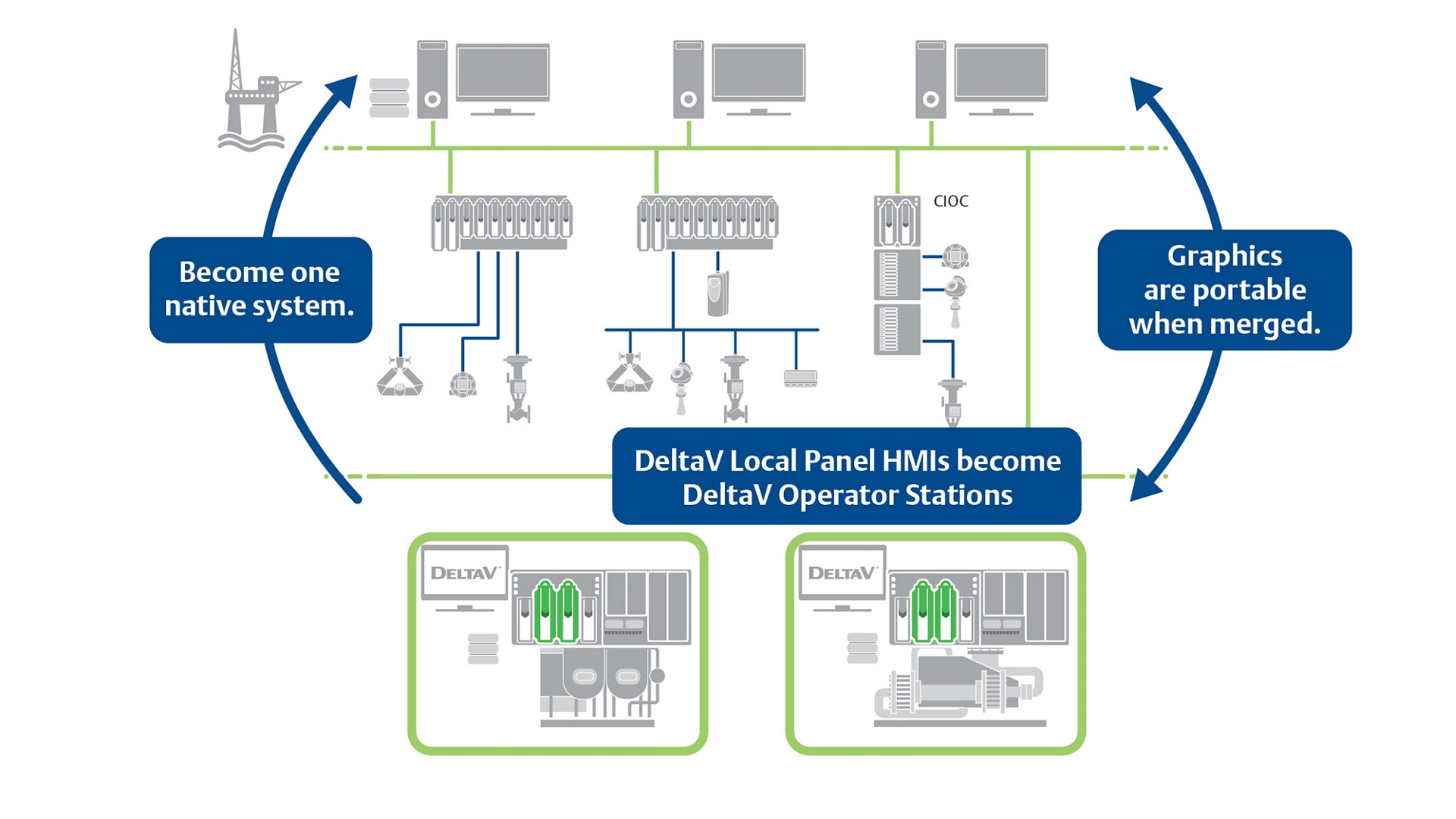

Eliminate Data Mapping
Eliminating many of the pains, costs, and time associated with data mapping exercises.

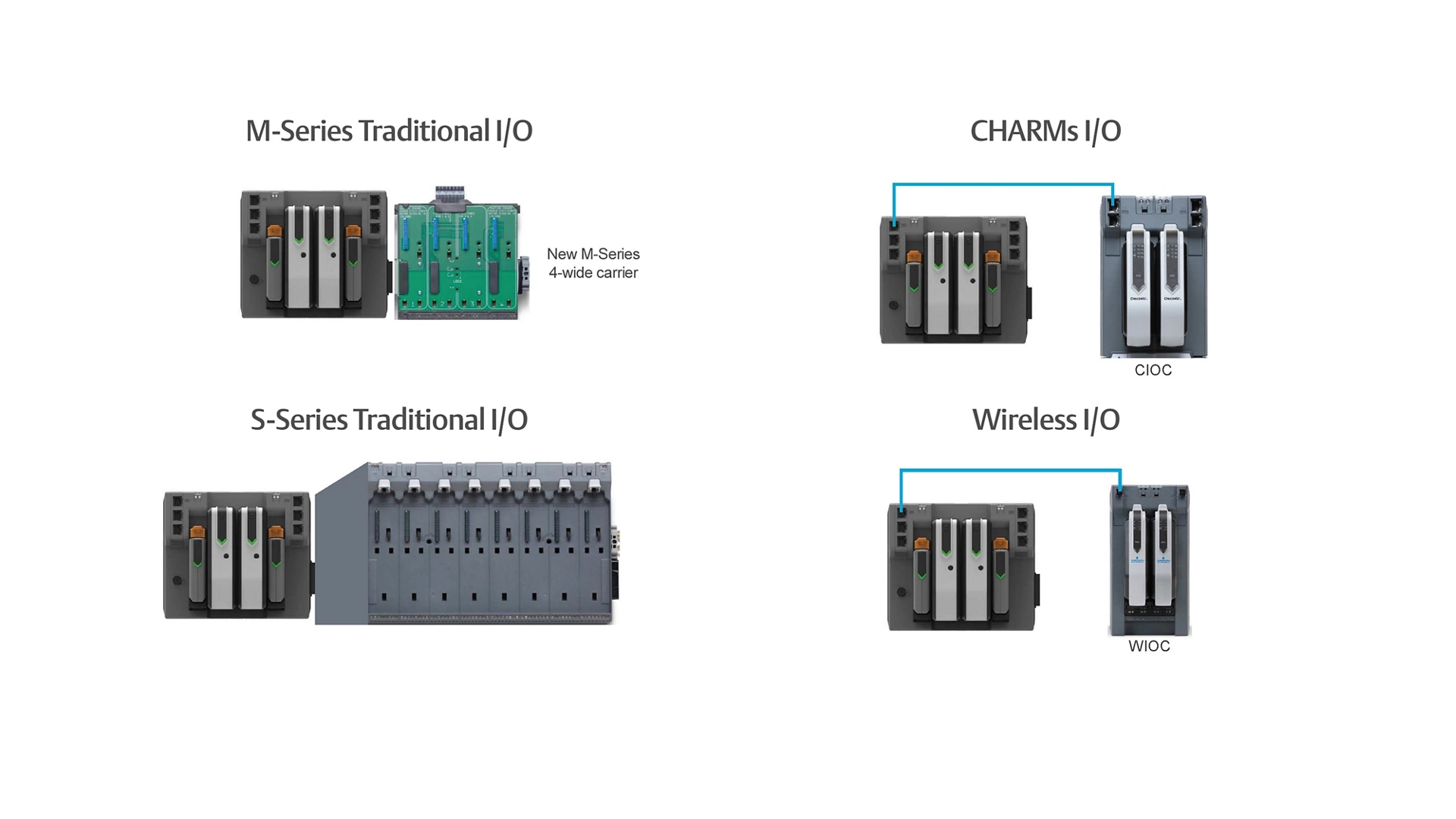

Flexible I/O
Connect to any existing DeltaV I/O options including:
- M-series traditional
- S-series traditional
- Charms I/O card, and
- Wireless I/O cards

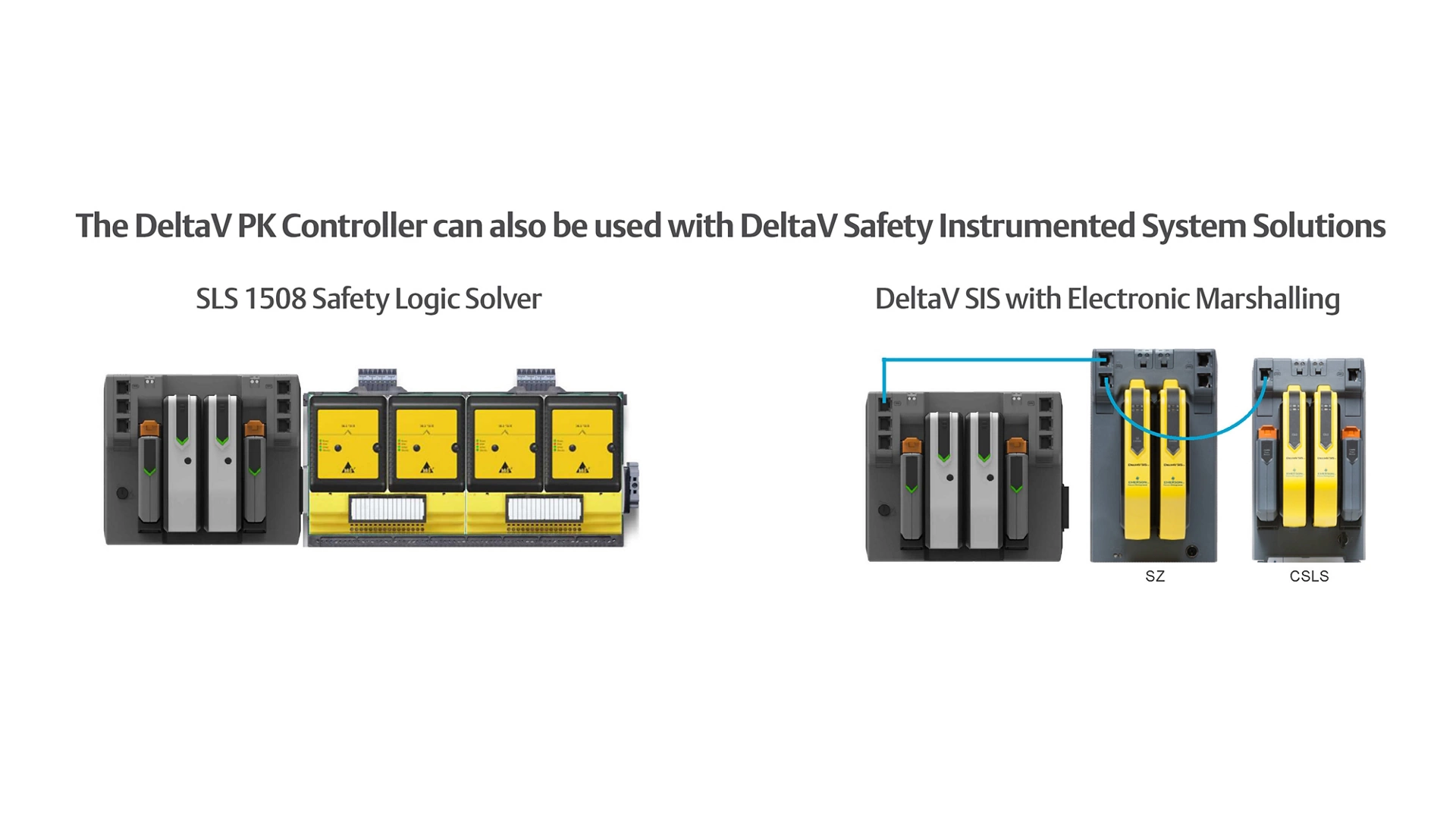

Integrated Safety Solution
The DeltaV PK Controller can be used with DeltaV SIS Electronic Marshalling and DeltaV SlS 1508 Safety Logic Solver - offering unique benefits and making it easily scalable.
Videos
DeltaV™ PK Controller bridging the gap between DCS and PLC systems
See how the DeltaV PK Controller takes the best of both PLC and DCS systems to solve common process industry challenges, including dealing with multiple skid units, PLCs, and managing multiple data sources.
Recognized as the industry’s first modular DCS controller, the DeltaV PK controller is right-sized, secure, reliable, and fits across many industries such as Life Sciences, Oil and Gas, Pulp and Paper, Mining, and Petrochemical.
DeltaV™ PK Controller bridging the gap between DCS and PLC systems
Emerson’s DeltaV PK Controller Offers Power, Versatility and Scalability Across Industries
Expand Your Knowledge

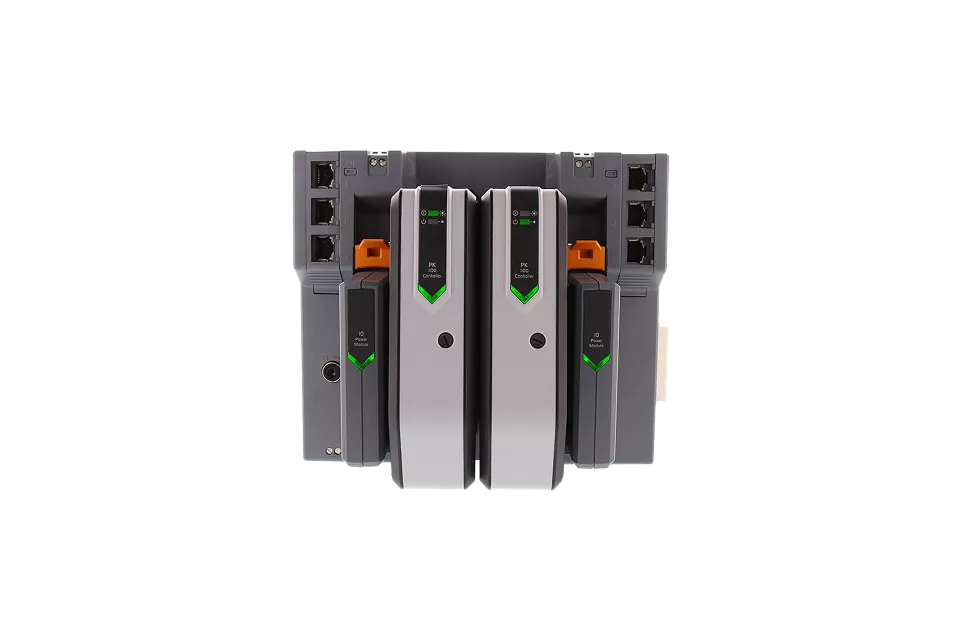

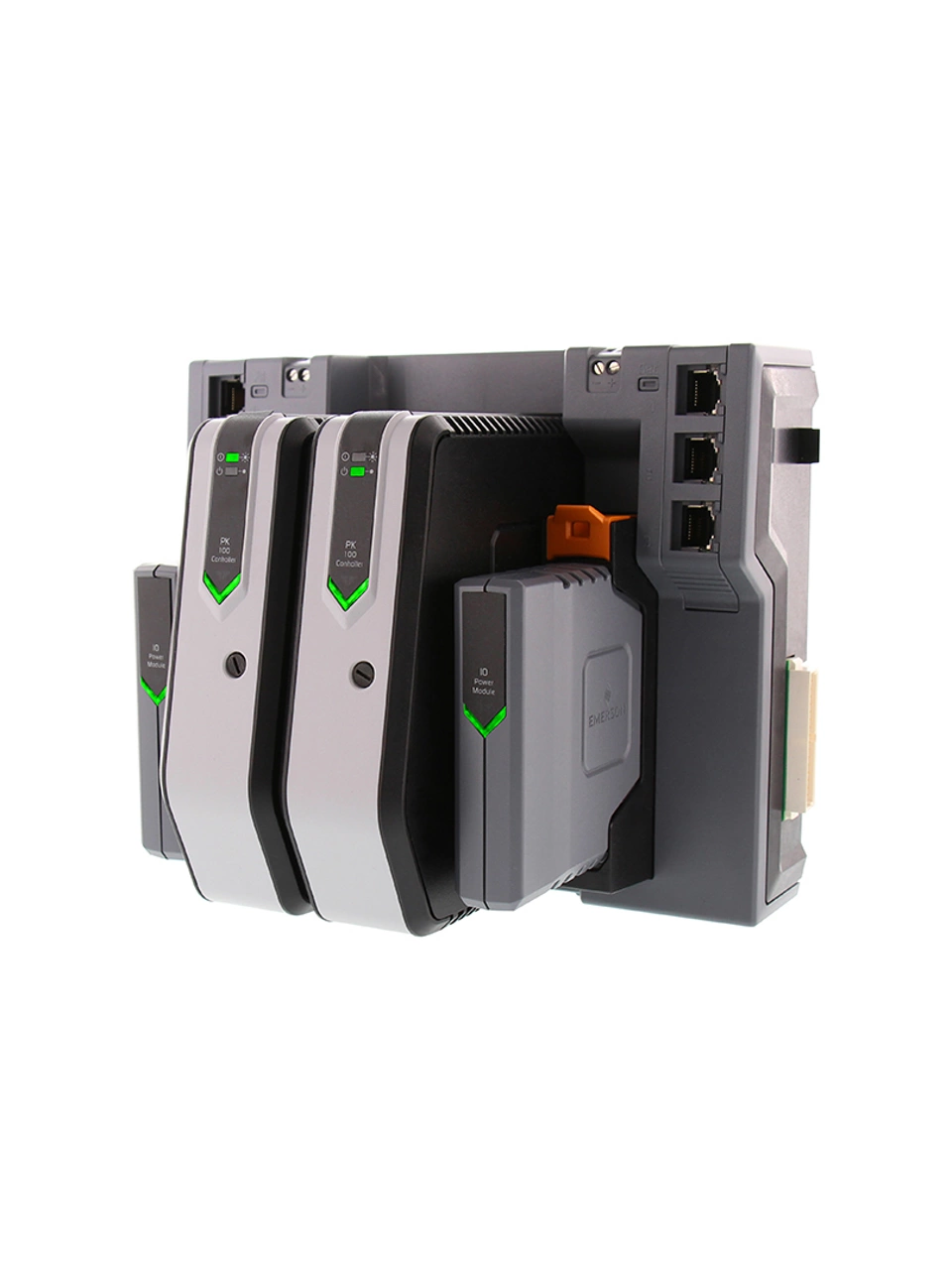

DeltaV PK Controller
The DeltaV PK Controller brings faster logic execution, built-in native Ethernet device protocols, and many scalable sizes, enabling it to address a wide variety of applications such as Ethernet device control, wellpads, and a wide variety of system sizes. From small-scale applications like skid-units, to your large-scale traditional control operations, the multi-purpose, multi-functional controller can handle your toughest demands no matter the size or stage of your operation.
Features
- Run standalone or as part of a DeltaV system
- Seamlessly merges into a DeltaV system, resulting in one native database and system
- Eliminates time-consuming and costly data mapping exercises
- Saves cabinet space with six built-in Ethernet ports
- Supports 1:1 redundancy without adding footprint or requiring configuration changes
- Flexible I/O supports M-series traditional, S-series traditional CHARMs I/O card, and Wireless I/O cards to best suit your system needs
- Integrated safety with DeltaV SIS Electronic Marshalling and DeltaV SIS 1508 Safety Logic Solver
- Easily connect third-party devices, including Panel HMIs and variable speed drives natively, without dedicated Ethernet or I/O cards
- Secured access with multiple layers of protection and encryption to prevent unauthorized access
- Faster logic execution for improved system performance
- Retain configuration for 18 months without power
Specifications
DST Limit | 100, 300, 750, or 1500 | |
Module Execution Rates | 25ms, 50ms, 100ms, 500ms, 1s, 2s, 5s, 10s, 30s, 60s | |
User Memory | Controller memory, SD-Card memory | |
Input Power Required | 24V DC | |
Protocols Supported Natively on PK Controller | Modbus TCP (Server & Client), Ethernet/IP (Client: Class 1 & Class 3), and OPC UA Server. Other protocols available through dedicated Bussed cards | |
Operating Temperature | -40° to 60°C (-40° to 140°F) | |
Storage Temperature | -40° to 85°C (-40° to 185°F) | |
Relative Humidity | 5 to 95%, non-condensing Protection Rating IP20, NEMA 12 | |
Airborne Contaminants | ISA-S71.04-1985 Airborne Contaminants Class G3 Conformal Coating Shock (Normal Operating Conditions) 10g ½-sine wave for 11ms | |
Vibration (Operative Limit) |
