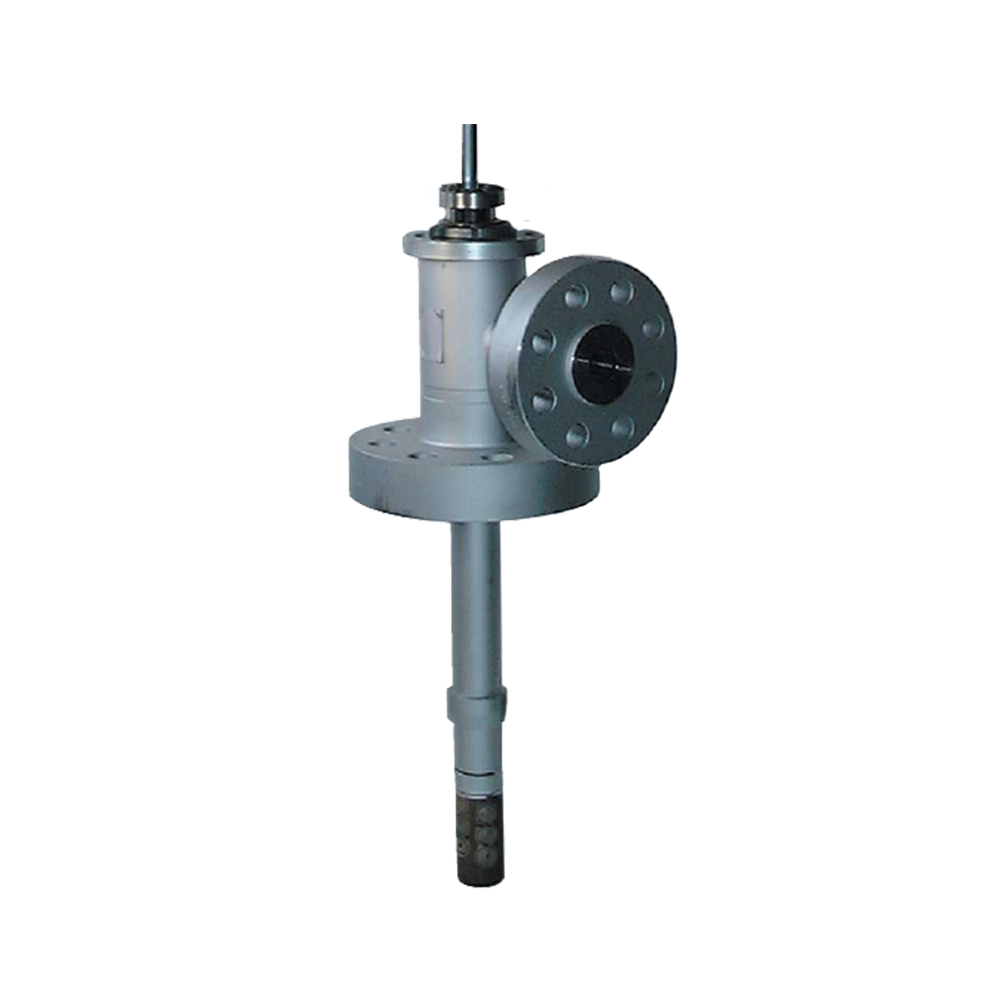

Fisher™ Yarway™ AT-18/28 Heavy Duty A.T.-Temp Desuperheater
Fisher™ Yarway™ AT-18/28 Heavy Duty A.T.-Temp Desuperheater
The Fisher Yarway AT-18/28 Heavy Duty A.T.-Temp Desuperheater was specifically developed for use on medium/high pressure steam applications. The fabricated construction makes it easily adaptable to meet various boiler codes and material specifications. The unit can also be used as a liquid into gas injector for which high grade alloy such as stainless steel is often used.
Key Features
- Forged construction
- High quality stuffing box, containing no asbestos
- Variable nozzle type
- Wide range of Cv (Kv) capacities available
- Special nozzle combinations available
- Semi balanced internals for economic actuator selection
- Pneumatic actuator available
- Pressure class and connections: ASME B16.34 class 900 to 2500 EN 1092 PN 160 - 400
- Materials: ASTM SA 182 F22 or 1.7383, ASTM SA 182 F347H or 1.4550, ASTM SA 182 F91 or 1.4903, Other materials upon request
