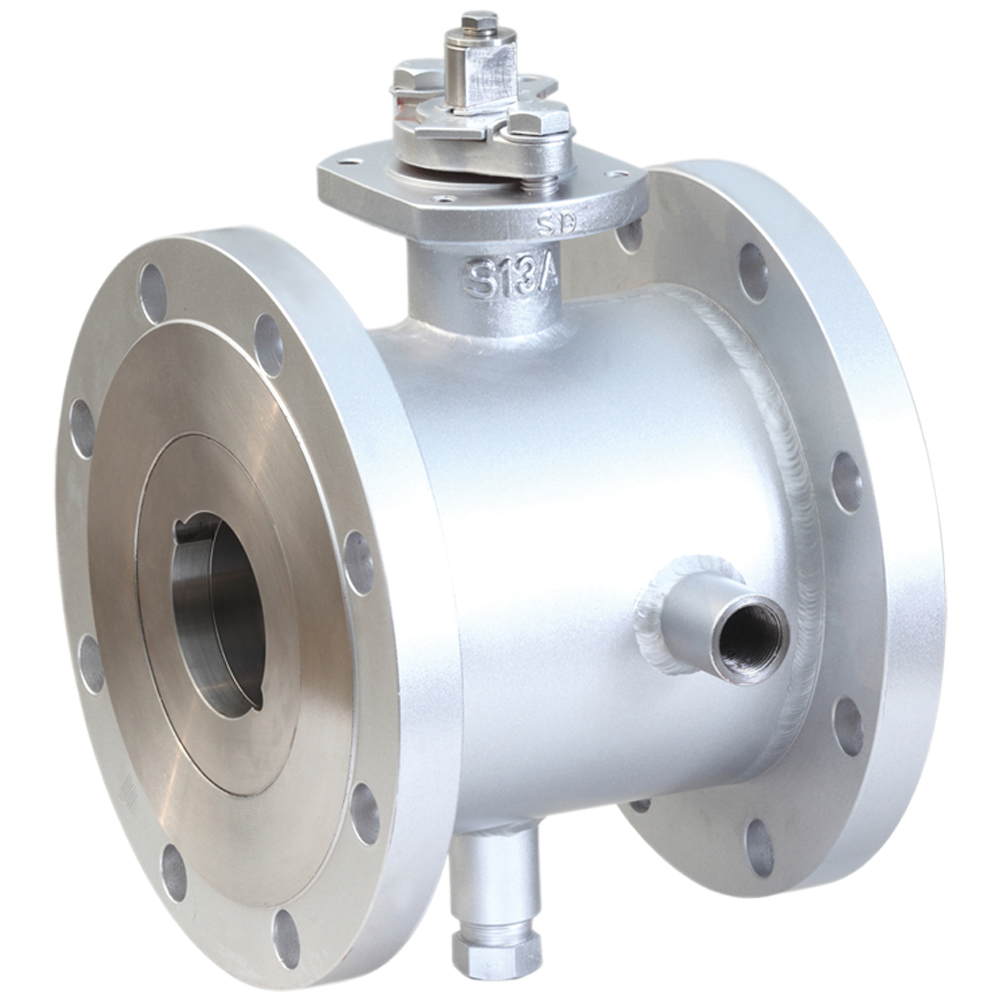

KTM Model Steam Jacketed

KTM jacketed ball valve, designed with full flange to flange welded jacket, to effectively maintain the temperature of the media

Key Features

Enhanced design with proven OM-II internal design features for maximum safety, sealing integrity and reliability
Full jacketed design effectively maintains the temperature of the media
High-pressure resistant jacket for supply of steam or cooling media up to 1.0 MPa (145 psi)
Reinforced PTFE bearing and packing rings for superior performance
Split construction of cap and seat holder simplifies maintenance
Compact and light-weight design
Machined ISO 5211 top mounting flange
Positive position indicator
Blow-out proof shaft (DN 100/ NPS 4 and larger)
Shaft seals positioned low on the shaft to avoid fluid from sticking, minimizing excessive torque and shaft torsion
In addition to standard E-seat, various seats are available. Each seat option will allow a wide range of performance, suitable for many applications
- PTFE / PFA copolymer: E-seat (standard)
- PEEK seat (option)
- Gratite® seat (opti
