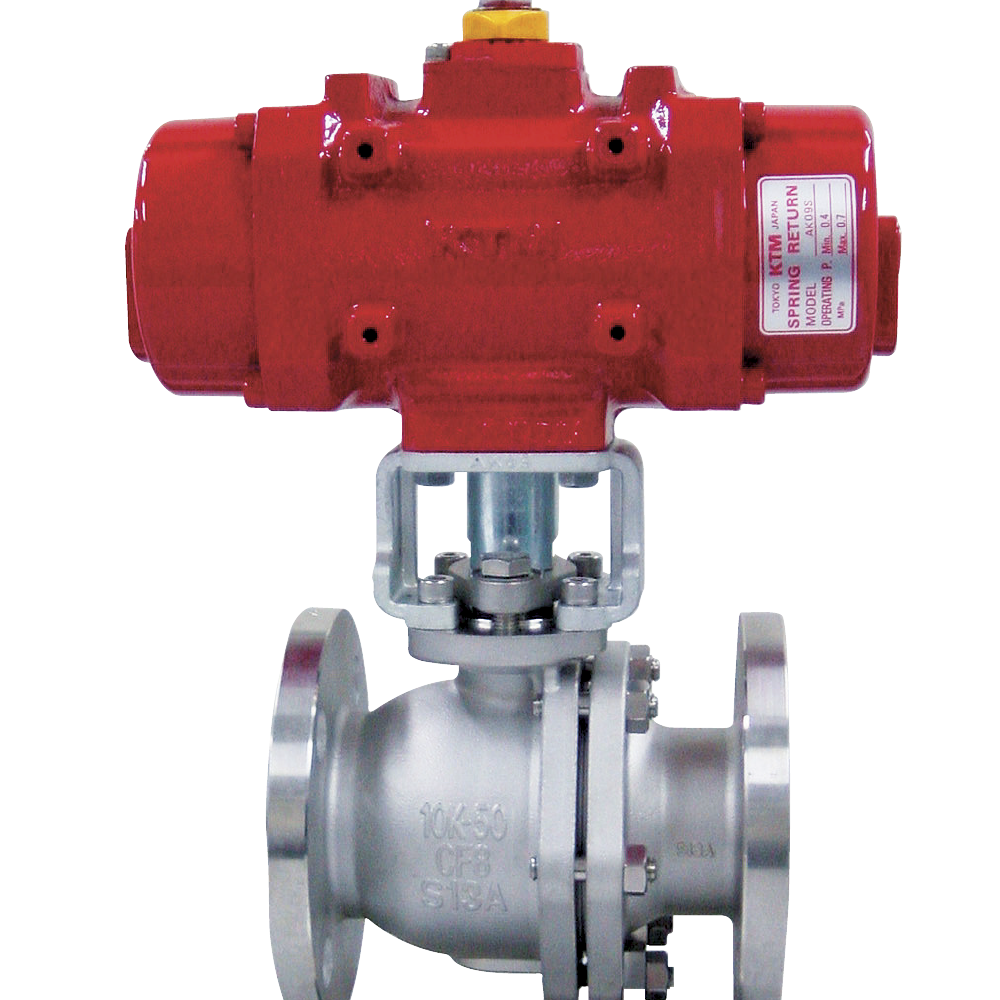

KTM Model AK & AW Pneumatic Actuators
Lightweight pneumatic actuator with guided rod design for smooth travel and extended service durability.
Key Features
- Double acting and single acting type are of the same shape and dimension (AK)
- Double rack and pinion gear construction produces of AK a smooth uniform stroke throughout the whole range. The AW has a Scotch yoke structure and uses a double piston system to generate high output.
- Guide rod eliminates side loading of the piston for smooth actuation and greater durability
- Double rack design of AK allows for a larger cylinder bore and shorter piston stroke, resulting in a more compact unit and high torque
- ISO 5211 mounting pattern to provide the greatest flexibility for valve adaptation (AK)
- Air supply port (piping seat) and stem top of AK conform to NAMUR standards for simple and direct mounting of accessories
- Interchangeable spring return sets according to each operating pressure/torqe.
