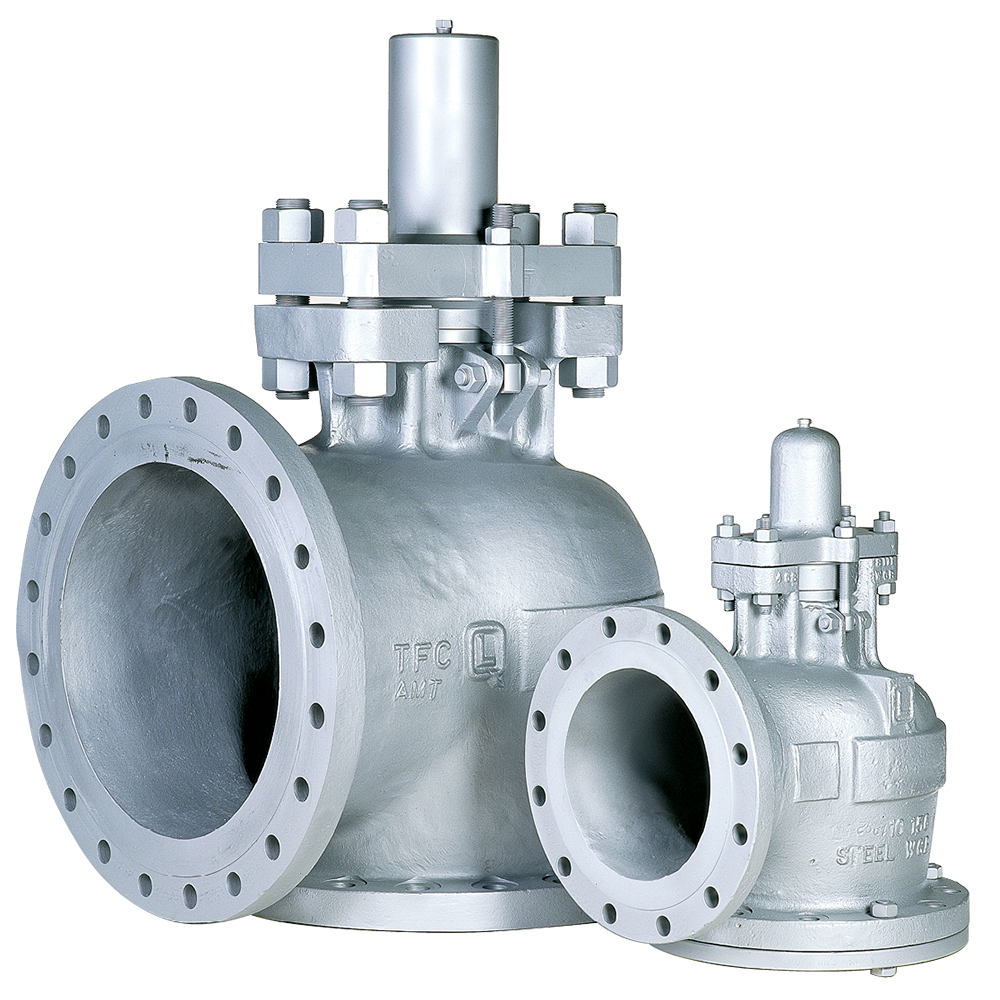

Lunkenheimer Figure F607 Angle Valve

The F607 is a check valve specifically designed for severe service in alumina and mining applications where scale and erosion are present

Key Features

Valves can be reground in-line.
Designed to ASME B16.34
Heavy duty wall and flange thickness well in excess of ASME B16.34 and ASME B16.5
Tested to API 598.
Large stem diameters for strength and stiffness.
Stellite 6 hardfacing as standard on disc and seat surfaces.
Hard facing available on stem.
Roller or plain bearings fitted to yoke bush - depending upon size.
Manufactured under quality system ISO 9001:2008, Certificate No. MEL 0929678/A
Documentation to EN 10424 1999 Type 3.1B (DIN 50409). Material certification for pressure containing components.
Used to prevent the backflow of fluids and slurry media.
Provides protection of pumps and other equipment to reverse flow conditions.
